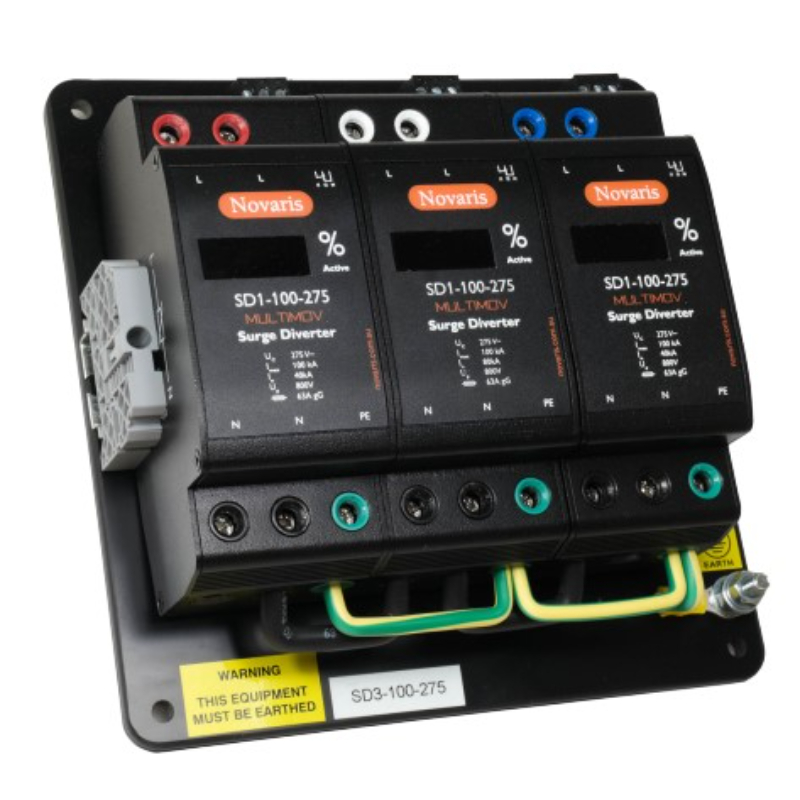

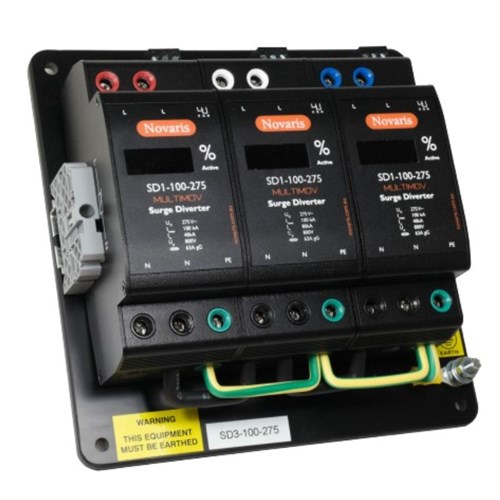

Novaris SD3-200-275 Surge Diverter 25kA 3 PH 200kA 230VAC Mount Aluminium IP20

Product Code: SD3-200-275

  • Surge protection for 230 VAC, 3-phase systems
  • High discharge capacity of 200 kA (L-N)
  • Digital display for easy monitoring
  • Compact design: 200x80x200 mm
  • Compliant with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SD3
Application
Industrial and commercial main switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA (L-N)
Max. Backup Fuse
100A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<700V
Max. Discharge Current Imax (8/20µs)
200kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
80kA (L-N)
Max. Continuous Operating Voltage
275VAC

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
80mm
Height
200mm
Width
200mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
