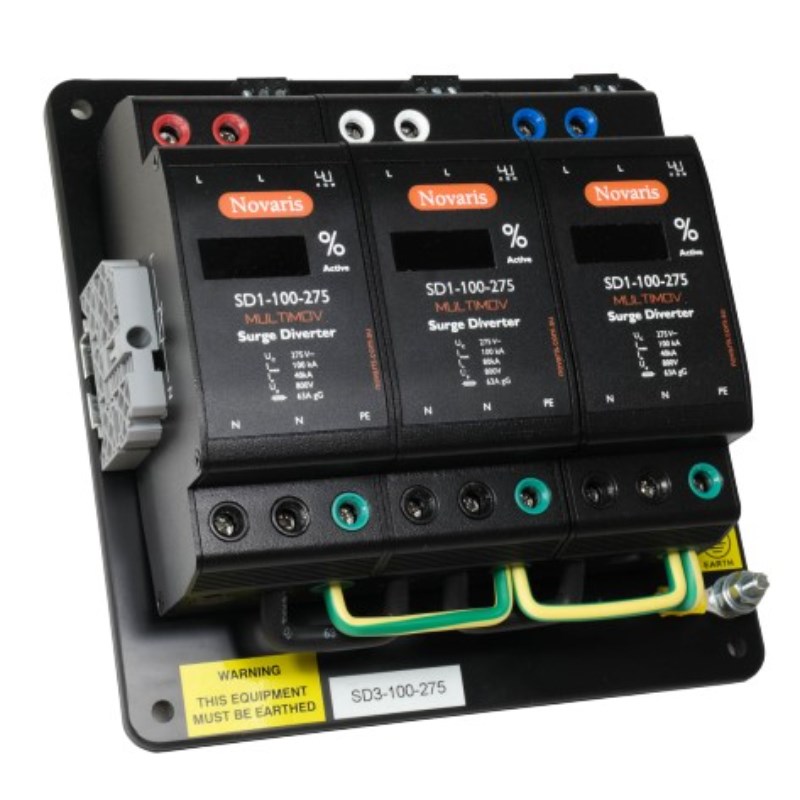

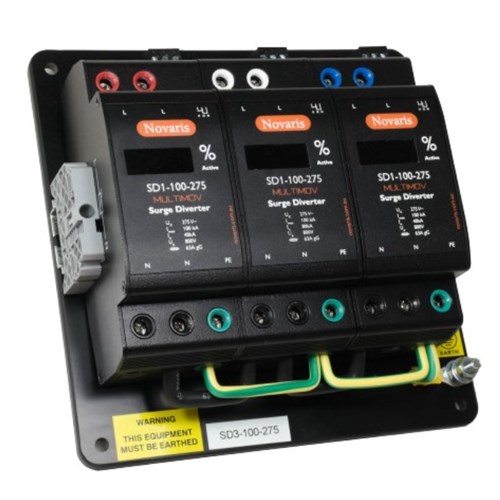

Novaris SD3-100-275 Surge Diverter 12.5kA 3 PH 100kA 230VAC Shunt Panel Mounting Aluminium IP20

Product Code: SD3-100-275

  • Surge protection for 230 VAC systems
  • Handles up to 100 kA current (L-N)
  • Compliant with IEC, AS/NZS, UL standards
  • Fast response time: <25 ns (L-N)
  • Durable aluminium build, IP20 rated
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SD3
Application
Industrial and commercial main switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA (L-N)
Max. Backup Fuse
63A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<800V
Max. Discharge Current Imax (8/20µs)
200kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
40kA (L-N)
Max. Continuous Operating Voltage
275VAC

Dimensions & Physical Data

Depth
80mm
Height
200mm
Width
200mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
