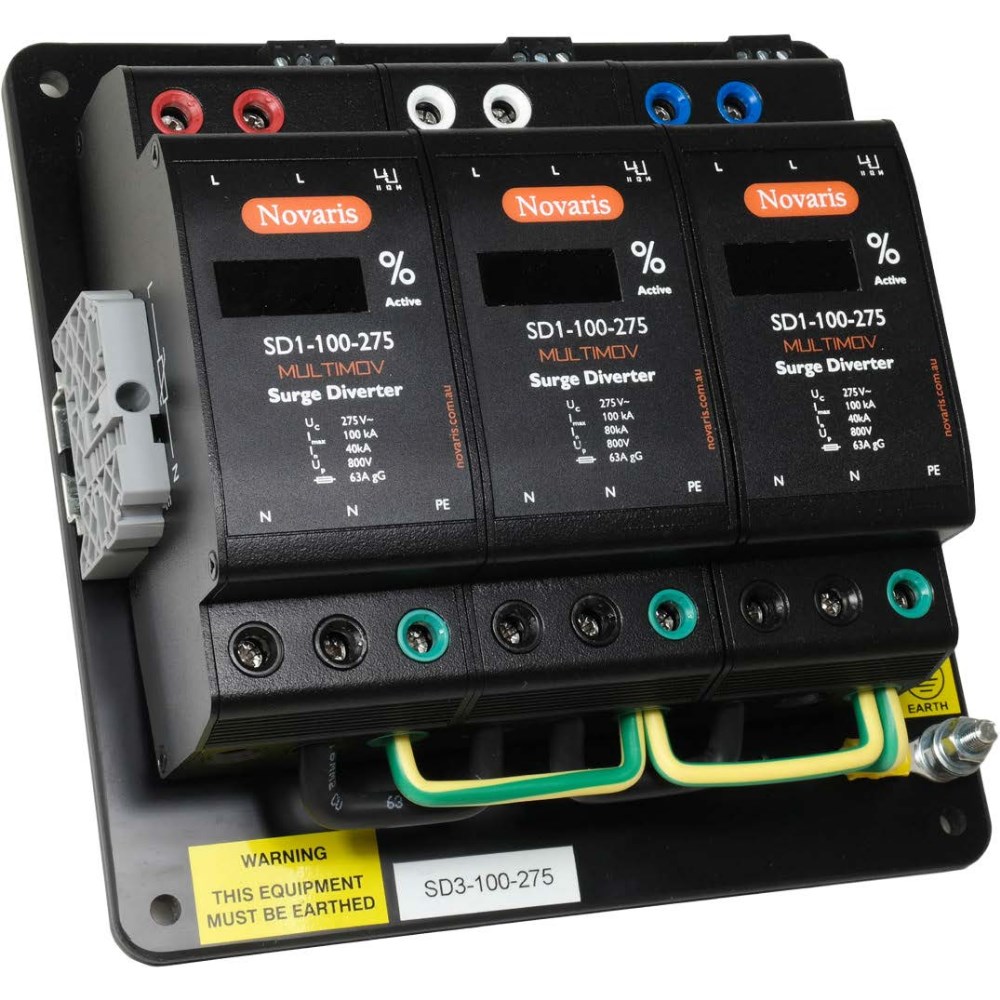

Novaris SD3-100-275-N Surge Diverter 12.5kA 15kA 3 PH 100kA 60kA 230VAC Mount Aluminium IP20

Product Code: SD3-100-275-N

  • Surge protection for 230 VAC systems
  • Handles up to 100 kA (L-N) current
  • Digital display for easy monitoring
  • Complies with IEC, AS/NZS, UL standards
  • Compact panel mount design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SD3
Application
Industrial and commercial main switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA (L-N)50kA (N-PE)
Max. Backup Fuse
80A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<800V
Max. Discharge Current Imax (8/20µs)
100kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
40kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Dimensions & Physical Data

Depth
80mm
Height
200mm
Width
200mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
