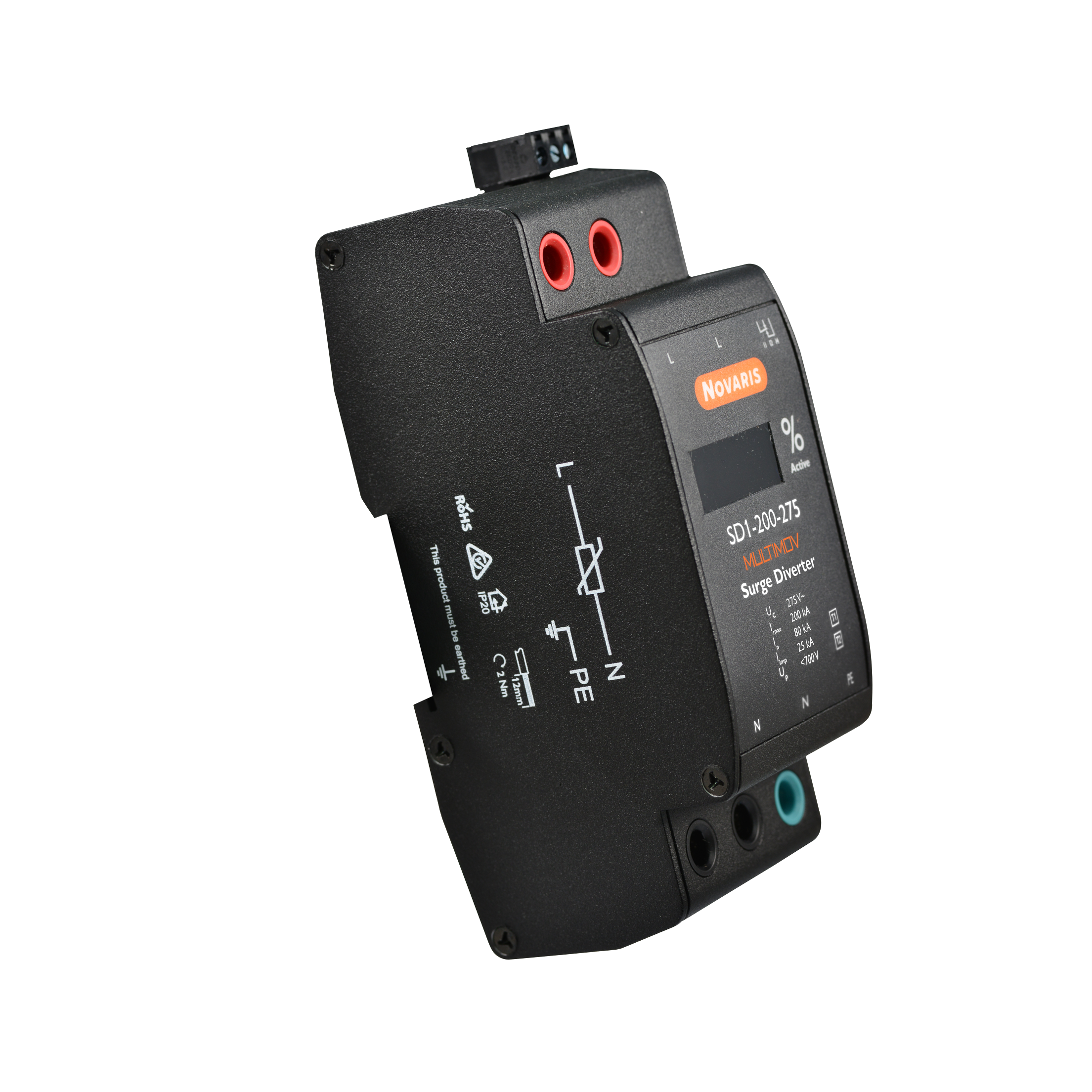

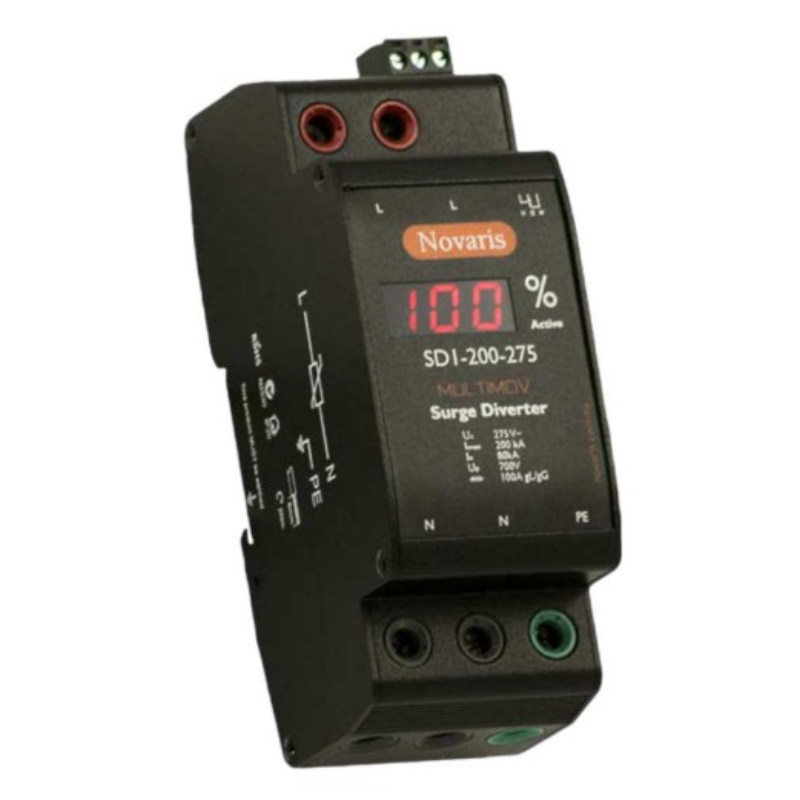

Novaris SD1-200-275 Surge Diverter 25kA 1 PH 200kA 230VAC Shunt TS35 Aluminium IP20

Product Code: SD1-200-275

  • Surge protection for 230 VAC systems
  • Handles up to 200 kA (L-N)
  • Quick response time under 25 ns
  • Compact size fits TS35 DIN rail
  • Complies with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protective Device
Brand
Novaris
Series
SD1
Application
Industrial and commercial main switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
25 kA (L-N)
Max. Backup Fuse
63 A
No. of Phases
1
No. of Poles (Total)
1P
Rated Frequency
50-60 Hz
Nominal Voltage
230 V AC
Voltage Protection Level Up
< 700 V (L-N, at 3 kA 8/20 us)
Max. Discharge Current Imax (8/20µs)
200 kA (L-N)
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
80 kA (L-N)
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
Terminal capacity - power 16 mm²Terminal capacity - alarms 2.5 mm²

Dimensions & Physical Data

Depth
69 mm
Height
141 mm
Width
54 mm

Environmental

Operating Temperature
-40 to 70 °C
IP Rating
IP20
