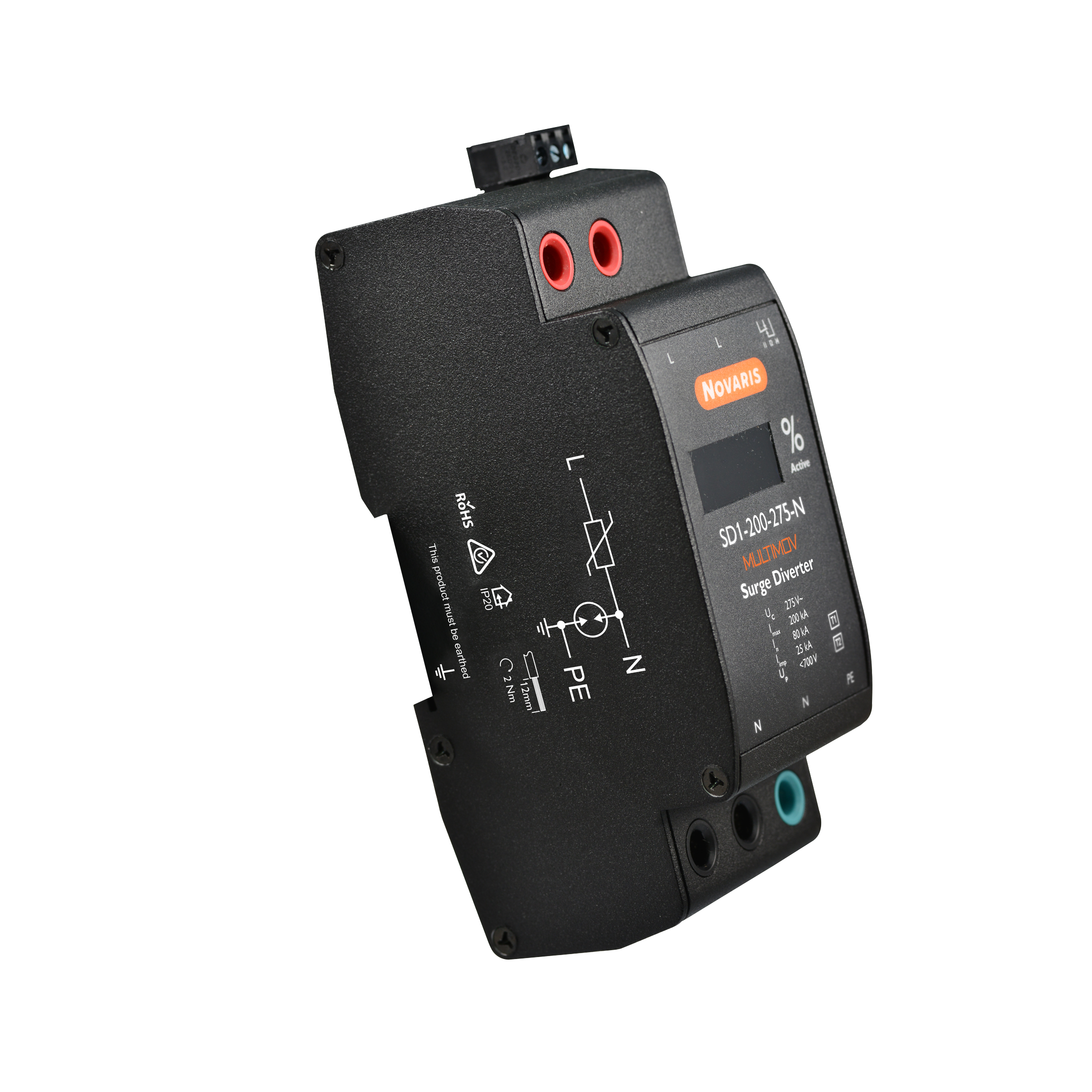

Novaris SD1-200-275-N Surge Diverter 25kA 30kA 1 PH 200kA 150kA 230VAC TS35 IP20

Product Code: SD1-200-275-N

  • Surge protection up to 200 kA (L-N)
  • Digital display for easy monitoring
  • Compact design fits TS35 DIN Rail
  • Operates in -40 to 70°C range
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multimov Surge Diverters
Brand
Novaris
Series
SD1
Application
Power, Main Switchboards, Commercial and Industrial

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
100A
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
200kA
Short Circuit Current Rating
100kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
80kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
141mm
Height
69mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
