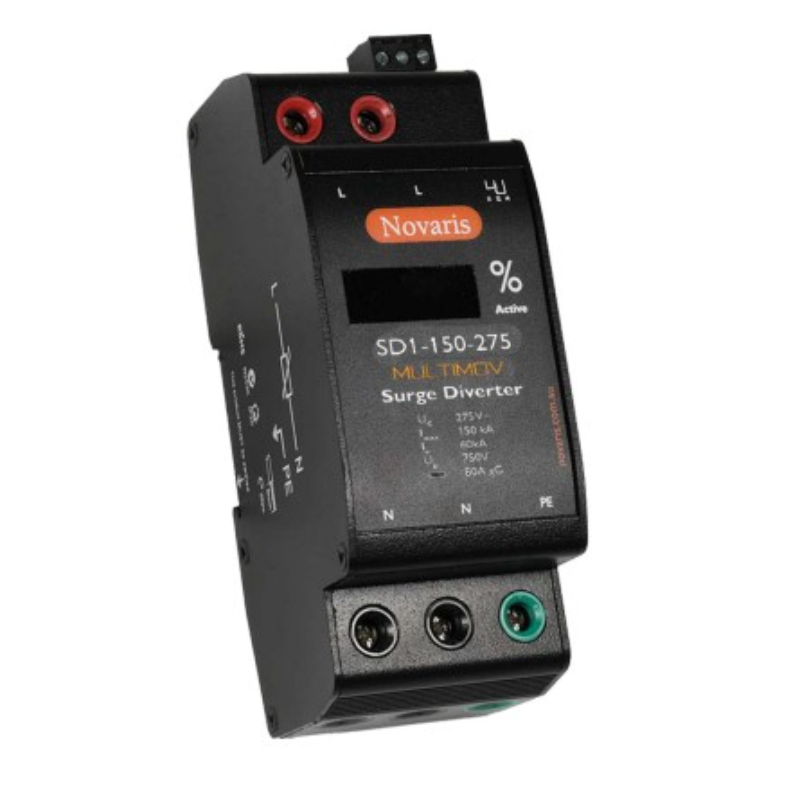

Novaris SD1-150-275 Surge Diverter 19kA 1 PH 150kA 230VAC Shunt TS35 Aluminium IP20

Product Code: SD1-150-275

  • Rated for 230 VAC, 150 kA (L-N) surge protection
  • Digital display with IP20 protection rating
  • Quick response time of <25 ns (L-N)
  • Compact design fits TS35 DIN Rail
  • Complies with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SD1
Application
Industrial and commercial main switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
19kA (L-N)
Max. Backup Fuse
100A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<750V
Max. Discharge Current Imax (8/20µs)
150kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
60kA (L-N)
Max. Continuous Operating Voltage
275VAC

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
69mm
Height
141mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
