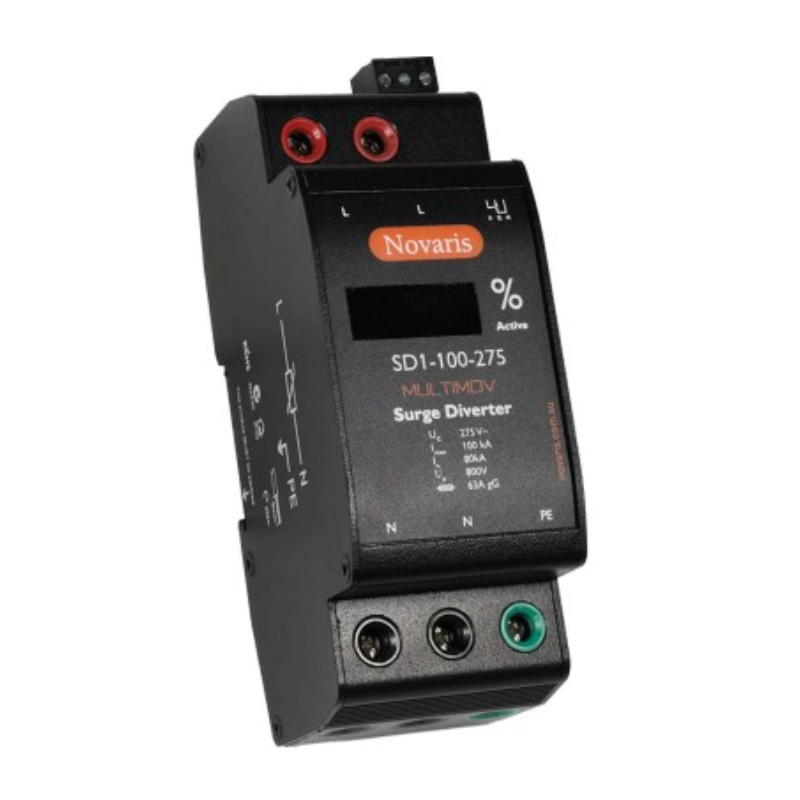

Novaris SD1-100-275 Surge Diverter 12.5kA 1-P 1 PH 100kA 230VAC Shunt TS35 Aluminium IP20

Product Code: SD1-100-275

  • Surge protection for 230 VAC, 1-phase systems
  • Handles up to 100 kA current (L-N)
  • Digital display for easy monitoring
  • Compact size: 54x69x141 mm, fits TS35 DIN rail
  • Compliant with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SD1
Application
Industrial and commercial main switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA (L-N)
Max. Backup Fuse
63A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<800V
Max. Discharge Current Imax (8/20µs)
100kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
40kA (L-N)
Max. Continuous Operating Voltage
275VAC

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
69mm
Height
141mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
