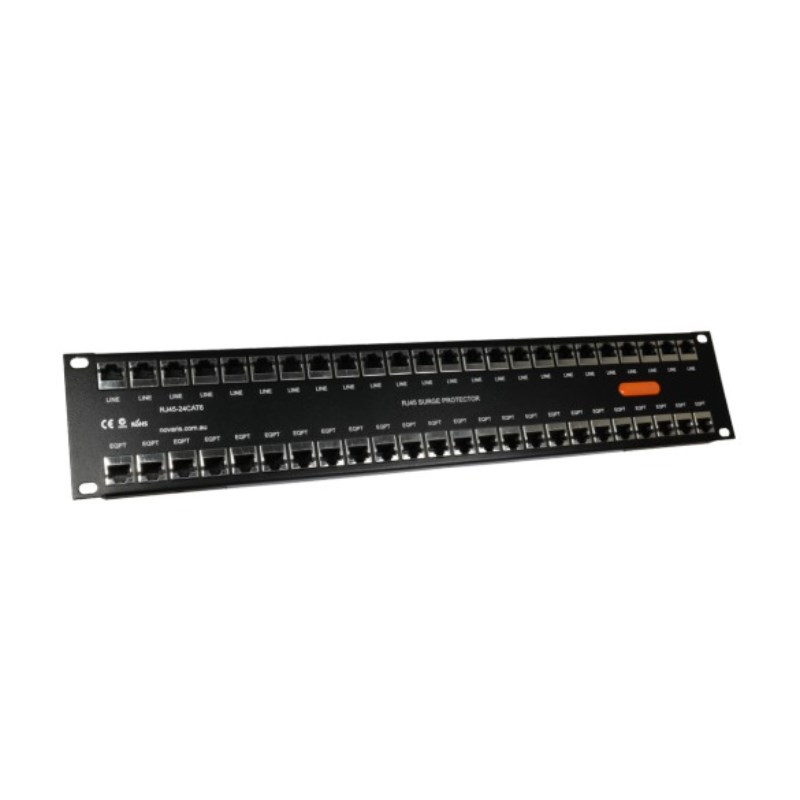

Novaris RJ45-24CAT6 Network Protector 1kA 2kA 5kA 10kA 4VAC RJ45 Rack Mount 88mm H Steel IP20

Product Code: RJ45-24CAT6

  • Protects networks with 5 kA per line current
  • Connects via (24) RJ45 ports
  • IP20-rated steel construction
  • Fast response time of <5 ns
  • Compliant with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Network Protectors
Brand
Novaris
Series
RJ45-CAT6
Application
Protection of equipment connected to twisted pair network cabling systems

Electrical

No. of Lines/Pairs
24 x RJ45 / 4 pairs & shield
Voltage Protection Level Up
20V @ 1kV/ µs
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
4 V AC / 6 V DC

Mechanical

Terminal Size
RJ45 Socket

Dimensions & Physical Data

Depth
483mm
Height
88mm
Width
20mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
