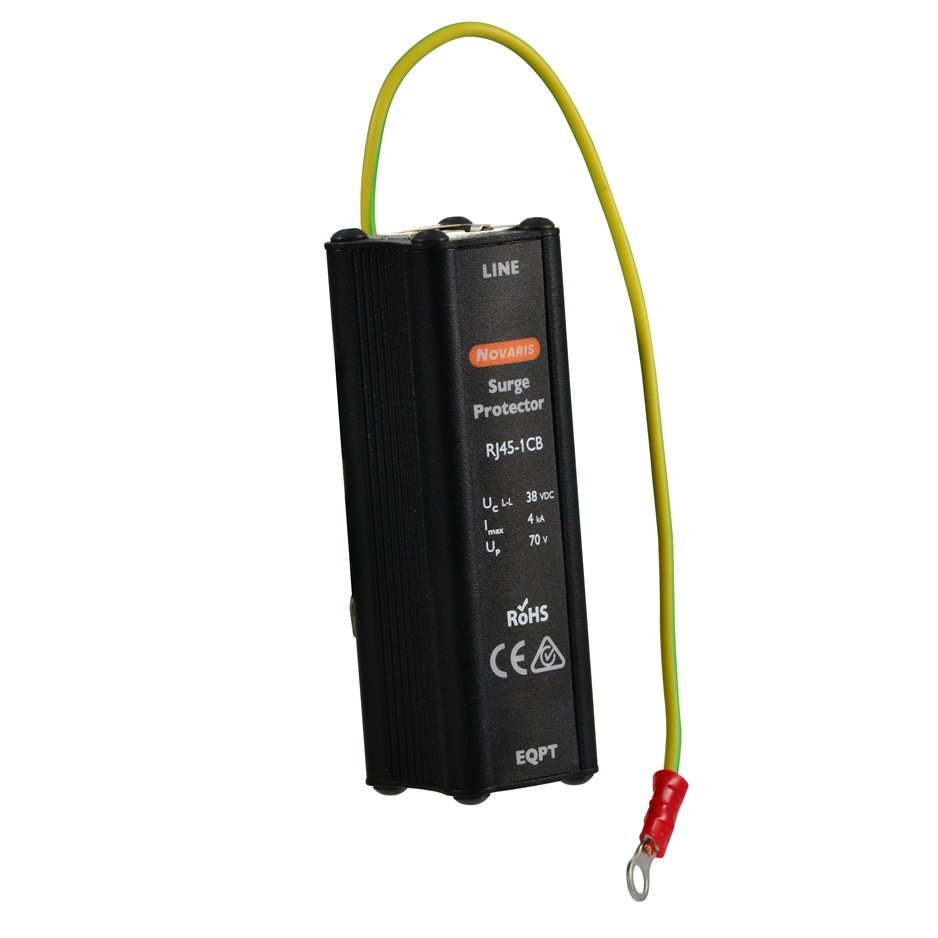

Novaris RJ45-1CB Surge Protection 2kA 4kA 30VAC Inline/TS35 Metal IP20

Product Code: RJ45-1CB

  • Protects networks with 30 VAC and 2 kA per line
  • Quick response time of less than 5 ns
  • Inline/TS35 DIN Rail mounting for easy install
  • IP20 rating ensures solid protection level
  • Certified to IEC, AS/NZS, UL, ITU-T standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
C - Bus Rj45 Surge Protection
Brand
Novaris
Series
RJ45-1CB
Application
Signal, Network and CCTV

Electrical

No. of Lines/Pairs
4 Pair
Voltage Protection Level Up
80V
Max. Discharge Current Imax (8/20µs)
2kA
Max. Continuous Operating Voltage
30 V AC / 38 V DC

Dimensions & Physical Data

Depth
80mm
Height
28mm
Width
27mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
