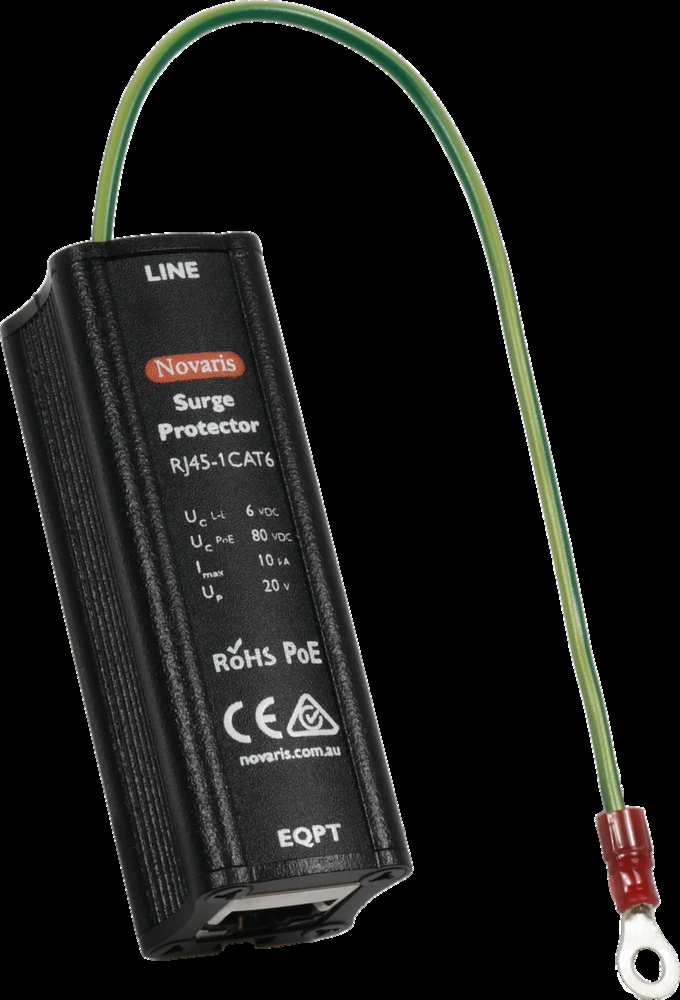

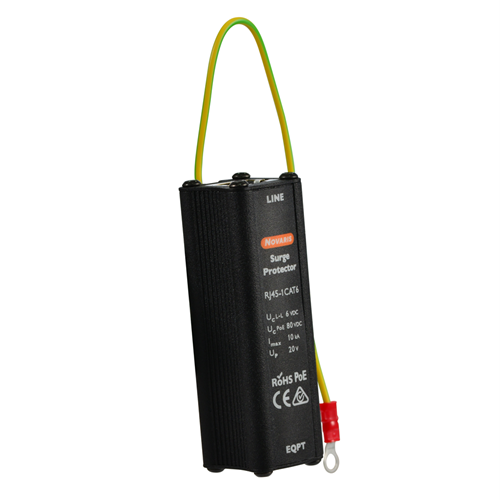

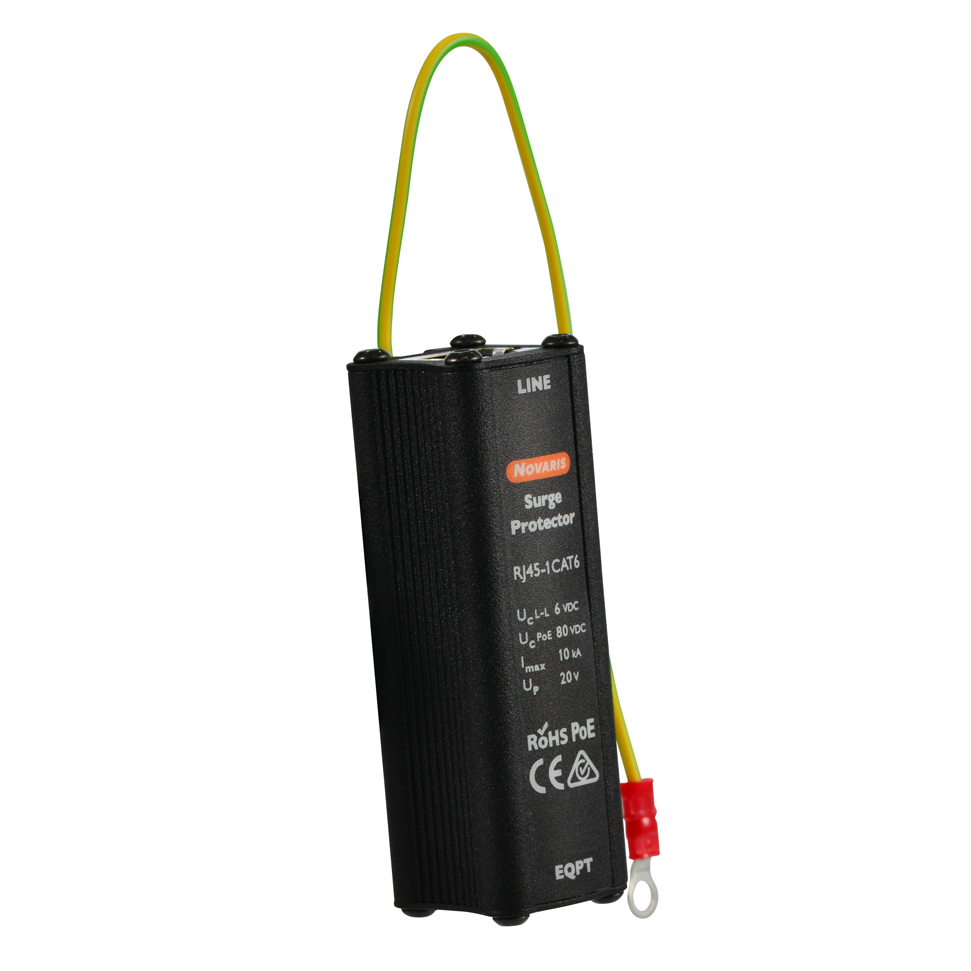

Novaris RJ45-1CAT6 Network Protector 1kA 2kA 5kA 10kA 4VAC RJ45 Socket Rack Mount 28mm H Steel IP20

Product Code: RJ45-1CAT6

  • Protects up to Gigabit/1000 BaseT networks
  • Fast response time of less than 5 ns
  • Rated for 5 kA per line, 10 kA common mode
  • Compact size: 80 mm x 27 mm x 28 mm
  • Meets IEC, AS/NZS, UL, ITU-T standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Network Protectors
Brand
Novaris
Series
RJ45-CAT6
Application
Protection of equipment connected to twisted pair network cabling systems

Electrical

No. of Lines/Pairs
4 pair & shield
Voltage Protection Level Up
20V @ 1kV/ µs
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
4 V AC / 6 V DC

Mechanical

Terminal Size
RJ45 socket

Dimensions & Physical Data

Depth
80mm
Height
28mm
Width
27mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
