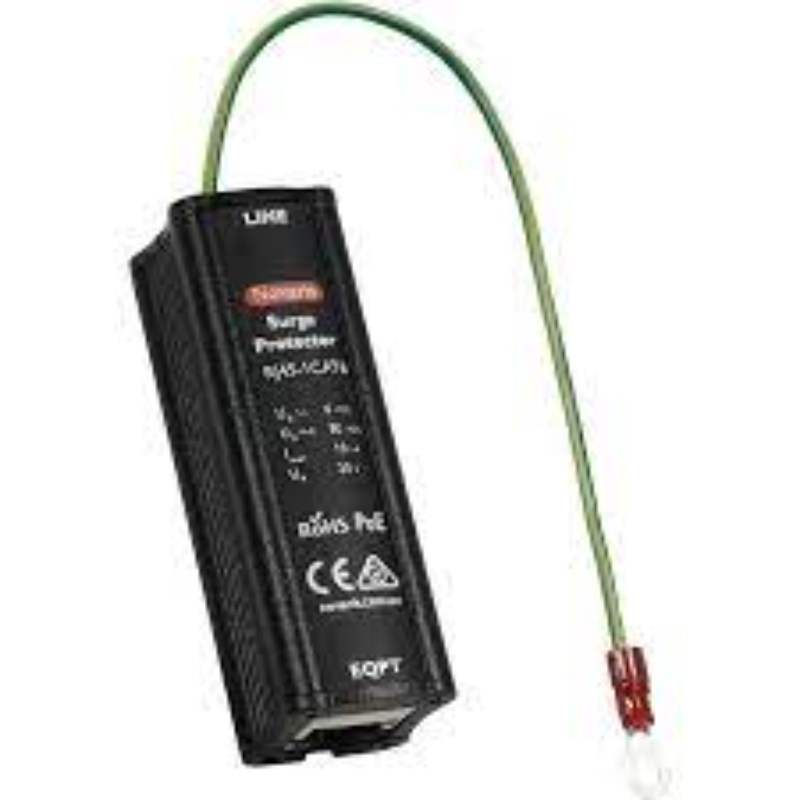

Novaris RJ45-1CAT6-EC90 Network Protector 5kA 4VAC RJ45 Socket TS35 178mm L 40mm W 46mm H Nylon IP20

Product Code: RJ45-1CAT6-EC90

  • Protects against transverse & common modes
  • Fast response time of less than 5 ns
  • Suitable for TS35 DIN rail mounting
  • Operates in -40 to 85°C temperature range
  • Complies with IEC 61643-21:2012 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Network Protectors
Brand
Novaris
Series
RJ45-CAT6
Application
Protection of equipment connected to twisted pair network cabling systems

Electrical

No. of Lines/Pairs
4 pairs and shield
Voltage Protection Level Up
20V @ 1kV/ µs
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
4 V AC / 6 V DC

Mechanical

Terminal Size
RJ45

Dimensions & Physical Data

Depth
80mm
Height
36mm
Width
27mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
