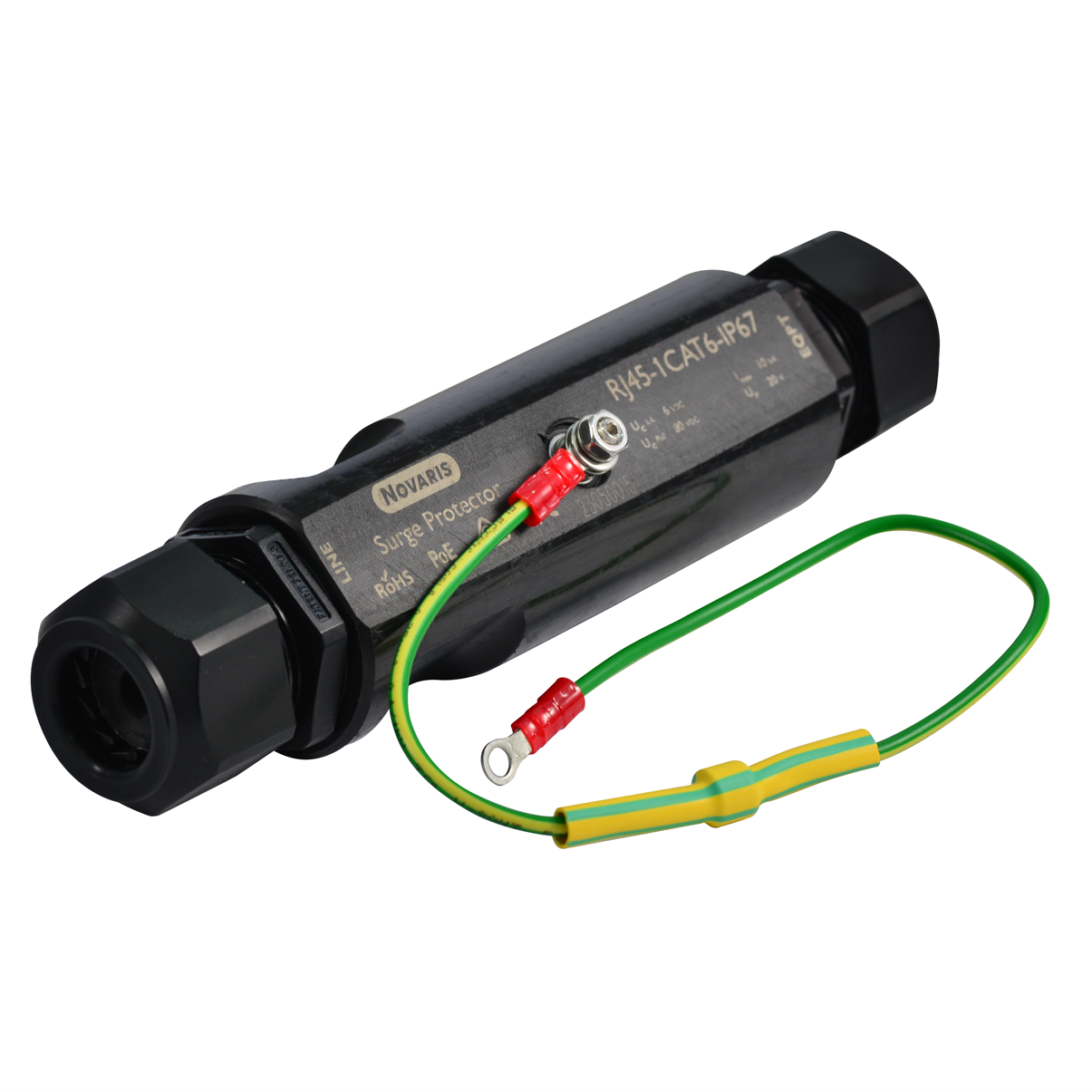

Novaris RJ45-1CAT6-EC90-IP67 Network Protector 5kA 4VAC RJ45 Socket TS35 178mm L 40mm W 46mm H Nylon IP67

Product Code: RJ45-1CAT6-EC90-IP67

  • RJ45-Cat6 network protection with IP67 rating
  • Handles 5 kA surge current effectively
  • Quick response time of less than 5 ns
  • Operates in -40 to 85°C temperature range
  • Complies with IEC 61643-21:2012 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ip67 Rated Local Area Network Protector
Brand
Novaris
Series
RJ45 IP67
Application
Signal, Network and CCTV

Electrical

Lightning Impulse Current Iimp (10/350µs)
1kA
No. of Lines/Pairs
4 pair & shield
Voltage Protection Level Up
20V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
4 V AC / 6 V DC

Dimensions & Physical Data

Depth
178mm
Height
46mm
Width
40mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
