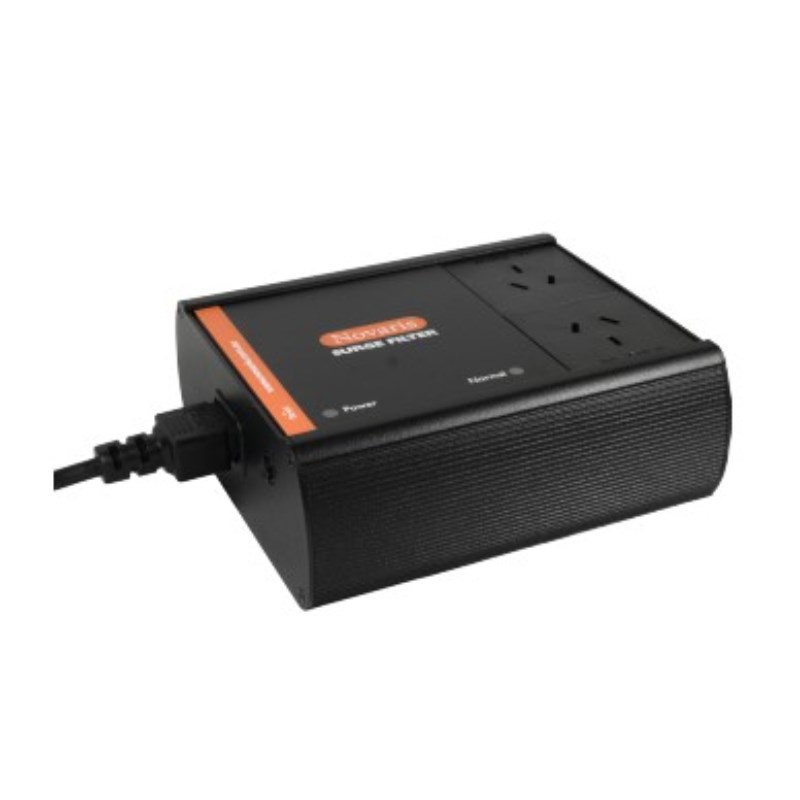

Novaris PP10A4-50 Plug-In Surge Filter 1 PH 50kA 275VAC 4 Outlet Free Standing Mount IP20

Product Code: PP10A4-50

  • Surge filter for industrial use
  • Handles up to 50 kA current
  • Operates from -40 to 70°C
  • Complies with IEC, AS/NZS standards
  • Compact: 205x140x60 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Plug - In Surge Filter
Brand
Novaris
Series
PP10 A
Application
Power, Appliance Protection, Plug in Filters (Australian)

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25 kA
Max. Backup Fuse
10:00 AM
Max. Load Current
10:00 AM
No. of Phases
1
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230 V AC
Voltage Protection Level Up
700 V
Max. Discharge Current Imax (8/20µs)
50 kA
Short Circuit Current Rating
25 kA
Nominal Discharge Current Inom (8/20µs)
20 kA
Max. Continuous Operating Voltage
275 V AC

Dimensions & Physical Data

Depth
137 mm
Height
60 mm
Width
205 mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
