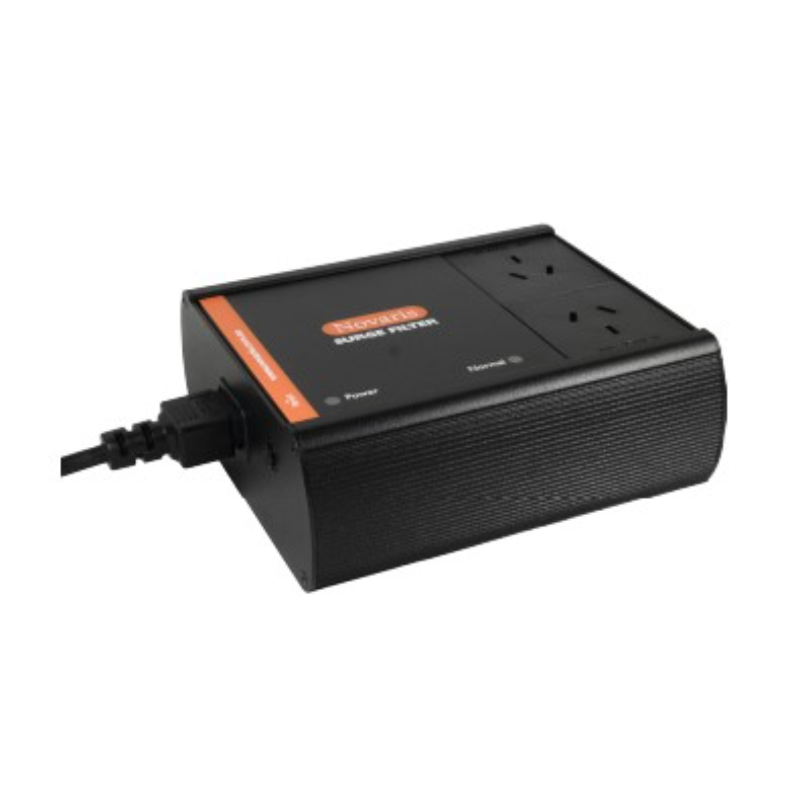

Novaris PP10A2-50 Plug-In Surge Filter 1 PH 50kA 275VAC 2 Outlet Free Standing Mount IP20

Product Code: PP10A2-50

  • Surge filter for 275 VAC, 1-phase systems
  • Handles up to 50 kA current
  • Compact size: 155x140x60 mm
  • Operates in -40 to 70°C environments
  • Complies with IEC and AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Filters
Brand
Novaris
Series
PP10
Application
Home theatre, HIFI, computerserver, PC or communications equipment

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)
Max. Backup Fuse
10A
Nominal Voltage
230V AC
Voltage Protection Level Up
<700V (L-N)<800V (N-PE)
Max. Discharge Current Imax (8/20µs)
50kA
Nominal Discharge Current Inom (8/20µs)
20kA (L-N)20kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)275VAC (N-PE)

Dimensions & Physical Data

Depth
60mm
Height
137mm
Width
155mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
