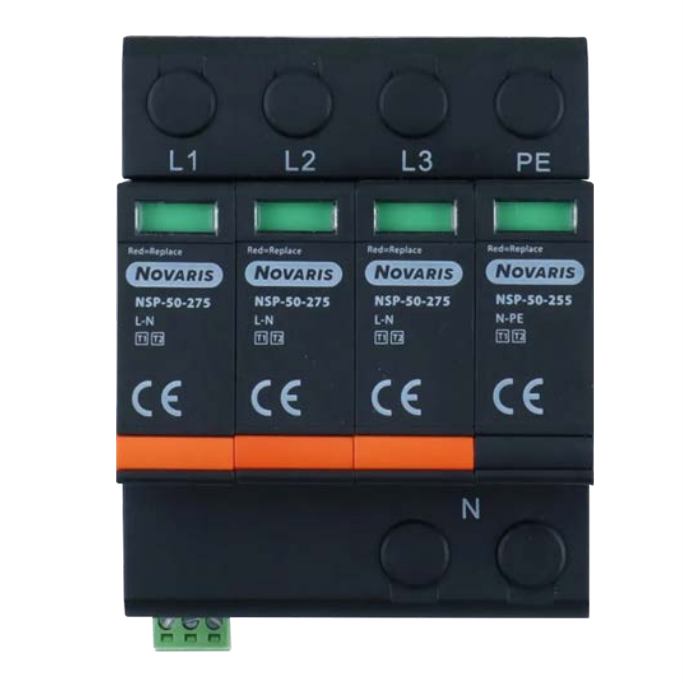

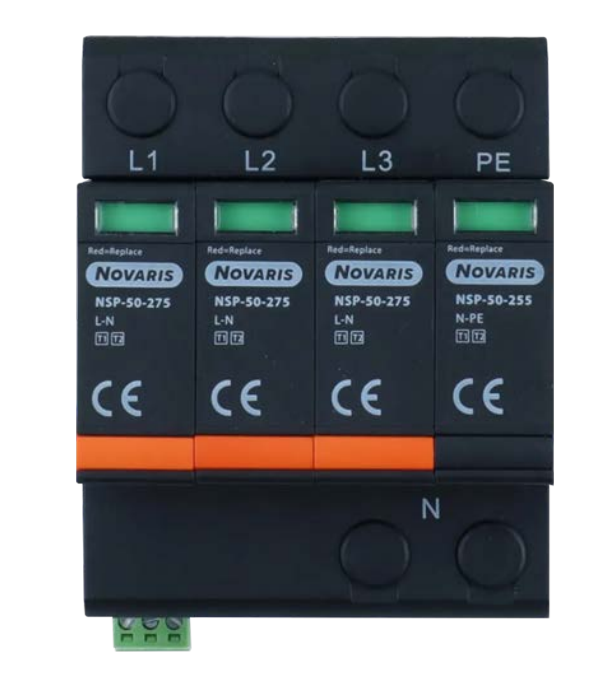

Novaris NSP3-50-275-N Surge Diverter With Module 7.5kA 12.5kA 3 PH 50kA 50kA 230VAC TS35 Plastic IP20

Product Code: NSP3-50-275-N

  • Handles 50 kA surge for robust protection
  • Thermal display: Green for normal, Red for failure
  • Easy mounting on TS35 DIN Rail
  • IP20 rated for solid object protection
  • Complies with IEC 61643-11, AS 1768 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
NSP3
Application
Small three phase industrial and domestic switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
7.5kA (L-N)12.5kA (N-PE)
Max. Backup Fuse
63A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<1200V
Max. Discharge Current Imax (8/20µs)
50kA
Nominal Discharge Current Inom (8/20µs)
20kA (L-N/N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 35mm²Terminal capacity - alarms 1.5mm²

Dimensions & Physical Data

Depth
67mm
Height
90mm
Width
72mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
