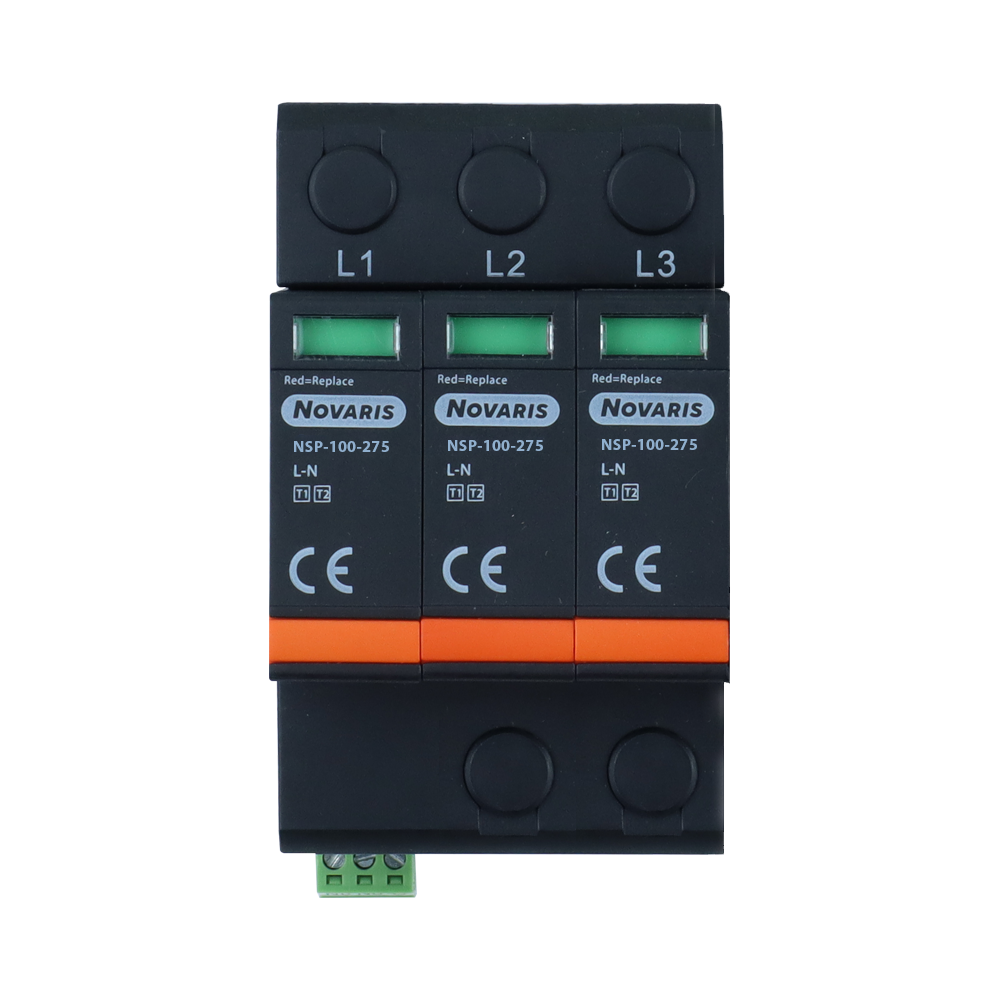

Novaris NSP3-100-275 Surge Diverter W/Replaceable Module 3 PH 100kA 275VAC Plastic

Product Code: NSP3-100-275

  • Handles up to 100 kA short circuit current
  • Suitable for 275 VAC systems
  • Designed for 3-phase applications
  • Durable plastic construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
NSP3
Application
Small three phase industrial and domestic switchboards

Electrical

Max. Backup Fuse
32A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<1600V
Max. Discharge Current Imax (8/20µs)
100kA

Mechanical

Terminal Size
Terminal capacity - power 35mm²Terminal capacity - alarms 1.5mm²

Dimensions & Physical Data

Depth
67mm
Height
90mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
