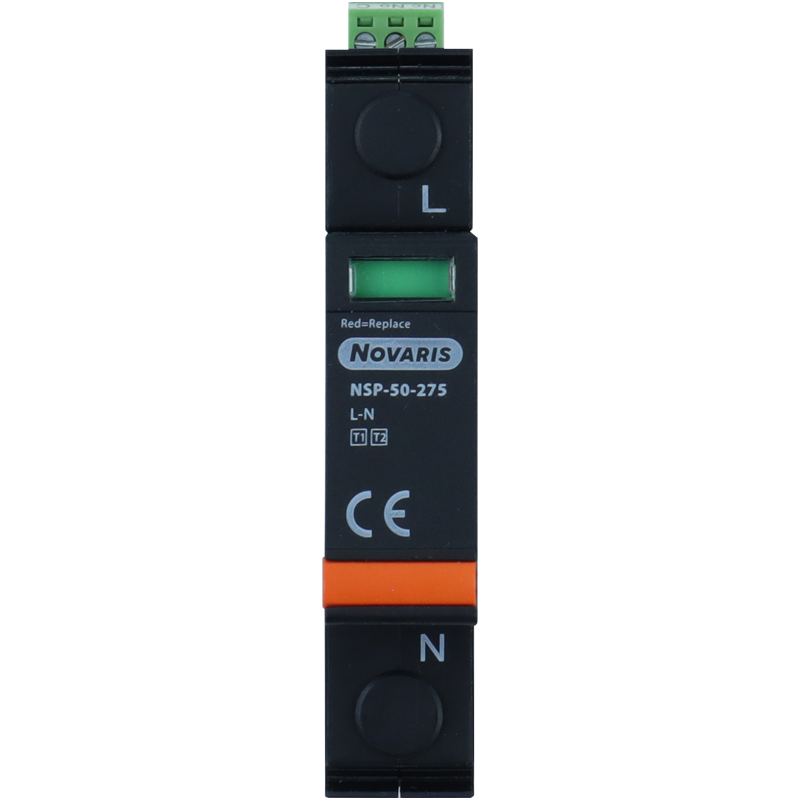

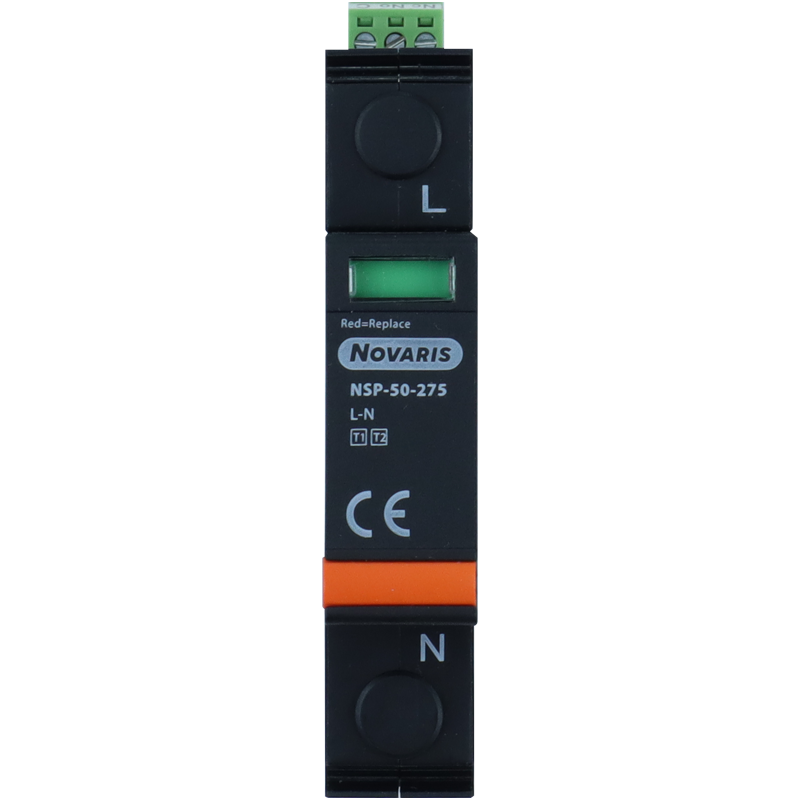

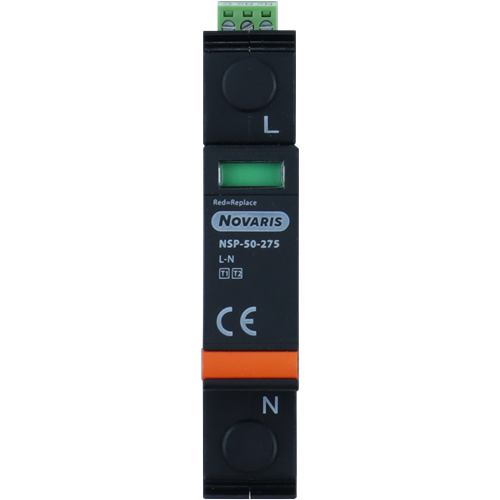

Novaris NSP1-50-275 Surge Diverter With Module 7.5kA 1 PH 50kA 230VAC TS35 IP20 Plastic

Product Code: NSP1-50-275

  • Surge protection for 230 VAC systems
  • Handles up to 50 kA surge current (L-N)
  • Quick response time of <25 ns
  • Compact size with IP20 protection
  • Easy TS35 DIN Rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Nsp Surge Diverter
Brand
Novaris
Series
NSP1
Application
Power, Distribution Boards and Domestic MSB, Modular and Domestic

Electrical

Lightning Impulse Current Iimp (10/350µs)
7.5kA
Max. Backup Fuse
32A
Nominal Voltage
230V AC
Voltage Protection Level Up
1200V
Max. Discharge Current Imax (8/20µs)
50kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
67mm
Height
90mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
