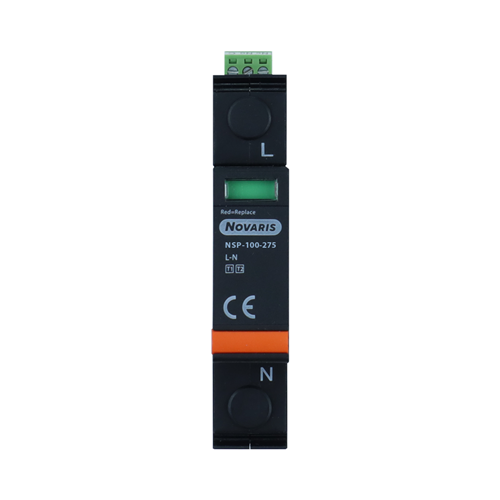

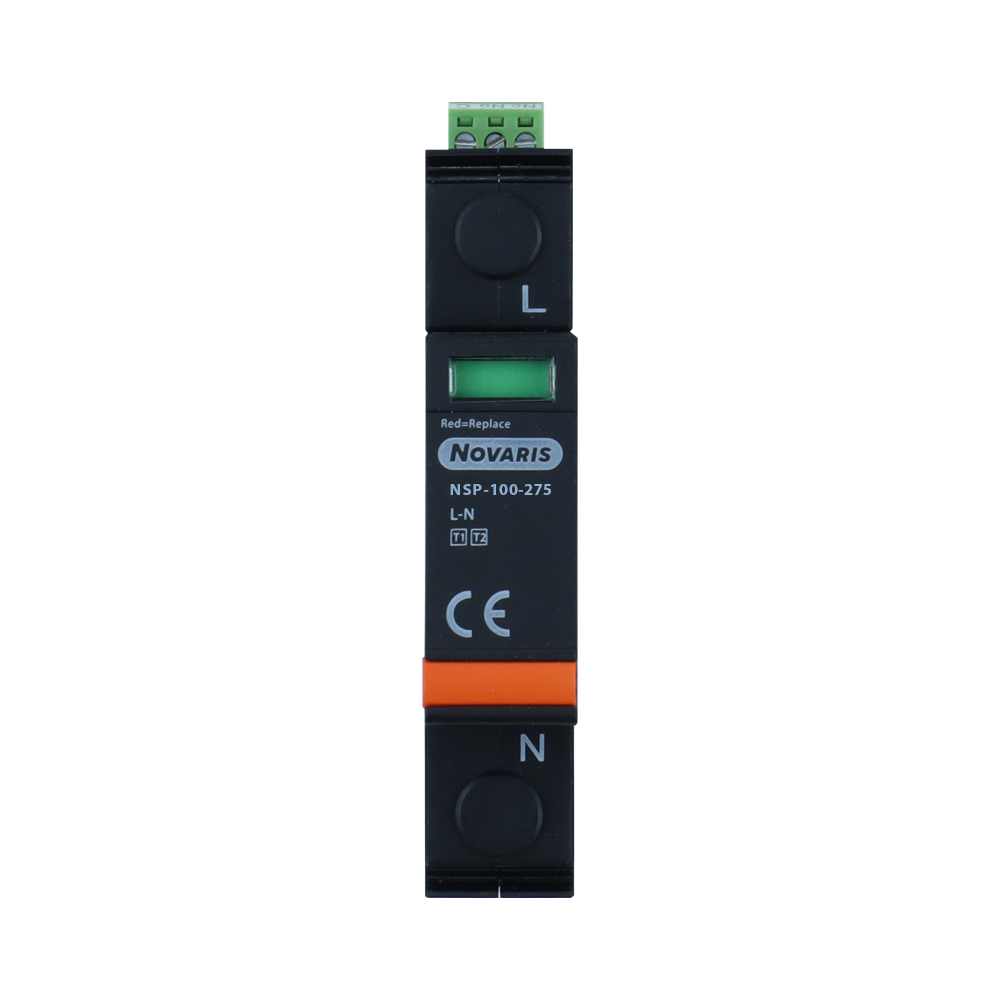

Novaris NSP1-100-275 Surge Diverter W/Replaceable Module 1-P 1 PH 100kA 275VAC Plastic

Product Code: NSP1-100-275

  • Rated for 275 VAC, 100 kA current
  • Single-phase, single-pole design
  • Durable plastic construction
  • Handles high short circuit currents
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Nsp Surge Diverter
Brand
Novaris
Series
NSP1
Application
Power, Distribution Boards and Domestic MSB, Modular and Domestic

Electrical

Lightning Impulse Current Iimp (10/350µs)
10kA
Max. Backup Fuse
63A
Nominal Voltage
230V AC
Voltage Protection Level Up
1600V
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
89mm
Height
87mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
