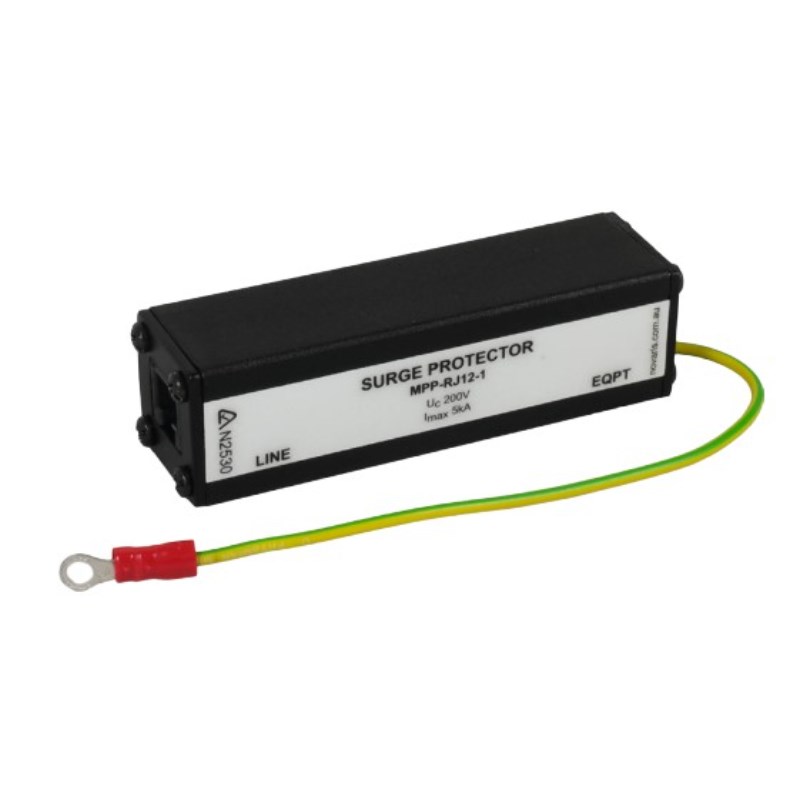

Novaris MPP-RJ12-1 Telephone Line Protector 10kA 200VDC 20MHz RJ12 Socket 26mm W 90mm D 26mm H Aluminium IP20

Product Code: MPP-RJ12-1

  • Supports 200 VDC & 10 kA current
  • Compact size: 26x26x90 mm
  • Operates in -40 to 85°C range
  • IP20 rated for protection
  • Aluminium build ensures durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rj Modular Plug Protection
Brand
Novaris
Series
MPP
Application
Signal, Network and CCTV

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
150V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
140 V AC / 200 V DC

Dimensions & Physical Data

Depth
95mm
Height
26mm
Width
26mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
