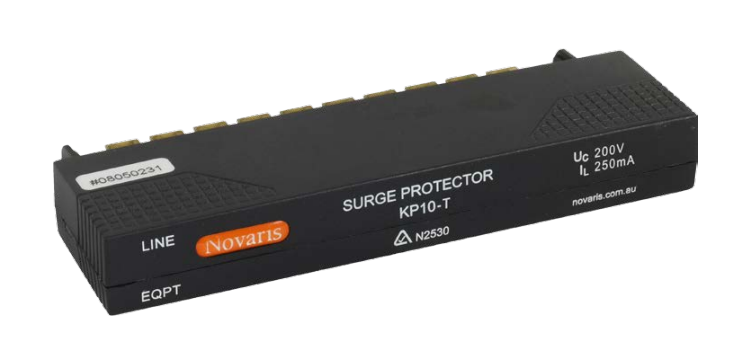

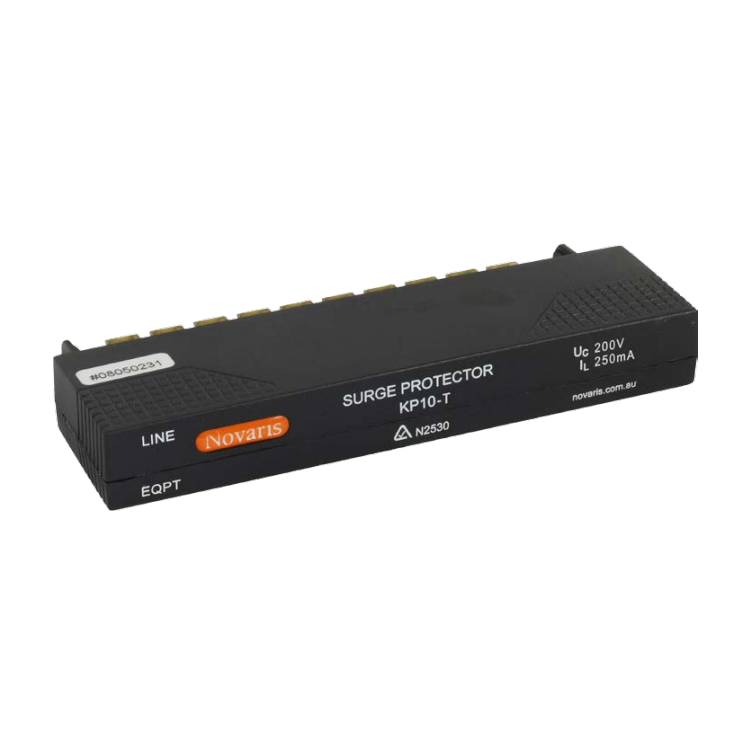

Novaris KP10-T Surge Protection 10kA 200VDC KRONE LSA-PLUS Mount

Product Code: KP10-T

  • Protects against transverse & common mode surges
  • Rated for 200 VDC and 10 kA current capacity
  • Compact design: 126mm x 53.3mm x 18mm
  • Operates in -40 to 85°C temperature range
  • Compatible with KRONE LSA-PLUS mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Krone Protector
Brand
Novaris
Series
KP KRONE-LSA
Application
Signal, Network and CCTV

Electrical

No. of Lines/Pairs
10 pair
Voltage Protection Level Up
220V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
140 V AC / 200 V DC

Dimensions & Physical Data

Depth
126mm
Height
54mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
