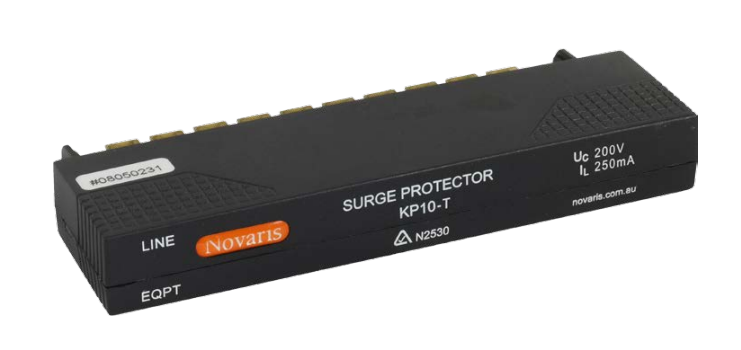

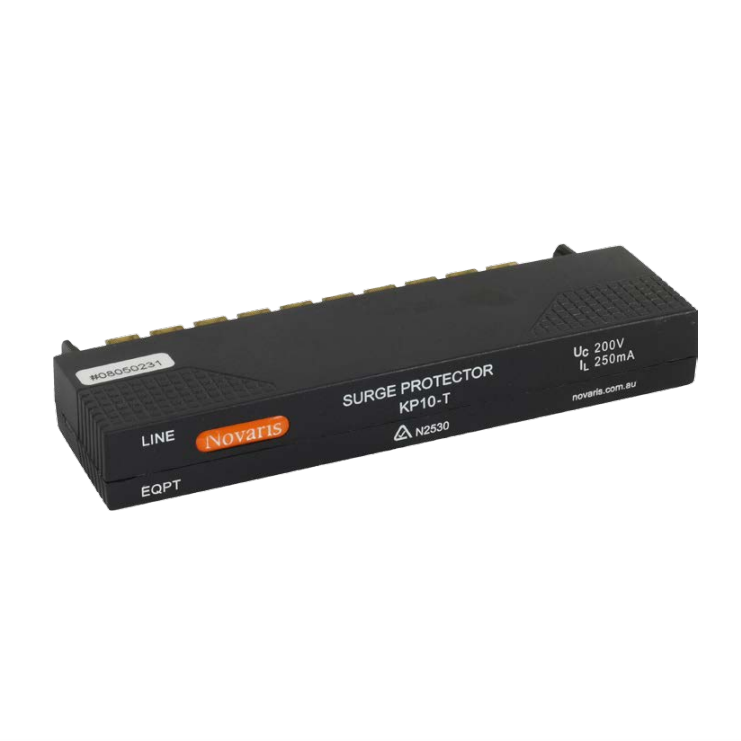

Novaris KP10-06 Surge Protection 10kA 8VDC KRONE LSA-PLUS Mount

Product Code: KP10-06

  • Surge protector for KRONE LSA-PLUS systems
  • Handles 10 kA current effectively
  • Operates in -40 to 85°C temperature range
  • Protects in transverse & common modes
  • Compact size: 126x53.3x18 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Krone Protector
Brand
Novaris
Series
KP KRONE-LSA
Application
Signal, Network and CCTV

Electrical

No. of Lines/Pairs
10 pair
Voltage Protection Level Up
10V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
6 V AC / 8 V DC

Dimensions & Physical Data

Depth
126mm
Height
54mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
