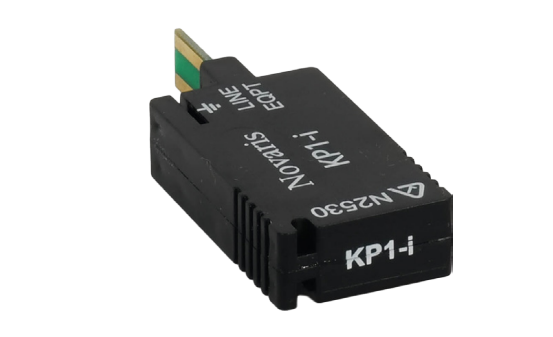

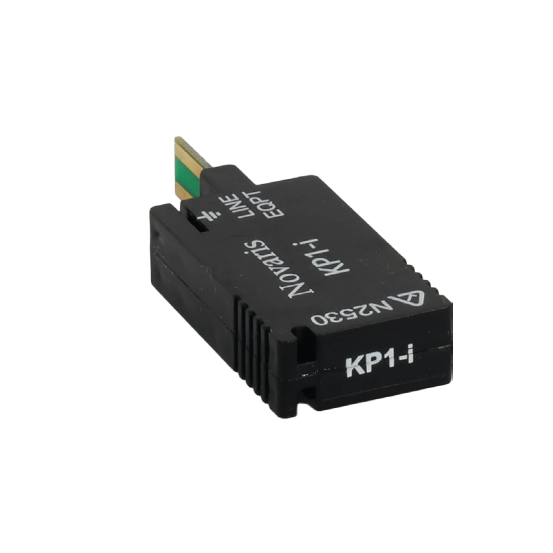

Novaris KP1-12 Telephone Protector 10kA 15VDC KRONE LSA-PLUS 21mm W 9.5mm D 53.3mm H ABS Black EDM IP20

Product Code: KP1-12

  • Surge protector rated at 15 VDC, 10 kA
  • Compact size: 21mm W x 53.3mm H x 9.5mm D
  • Fast response time of <5 ns
  • Complies with multiple international standards
  • Operates in temperatures from -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Krone Protector
Brand
Novaris
Series
KP KRONE-LSA
Application
Signal, Network and CCTV

Electrical

No. of Lines/Pairs
1 pair
Voltage Protection Level Up
17V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
11 V AC / 15 V DC

Dimensions & Physical Data

Depth
21mm
Height
54mm
Width
10mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
