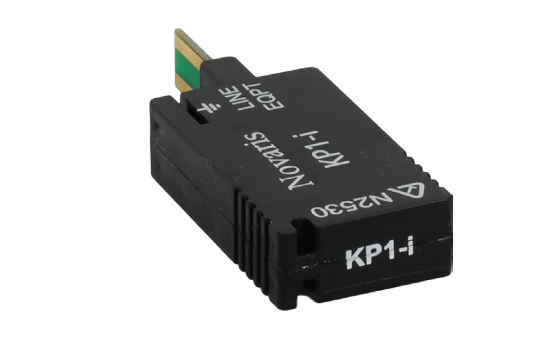

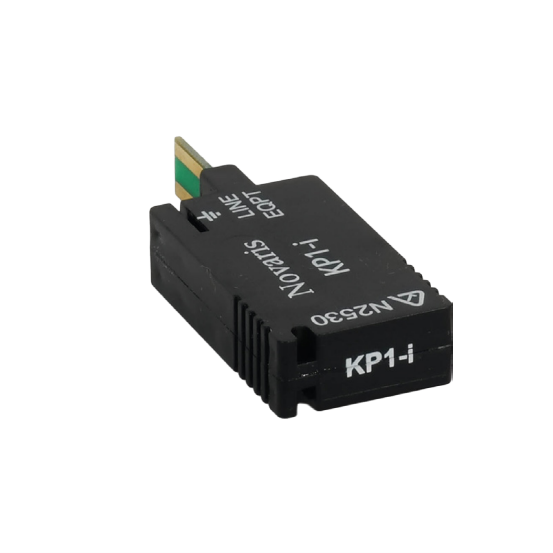

Novaris KP1-06 Telephone Protector 10kA 8VDC KRONE LSA-PLUS 21mm W 9.5mm D 53.3mm H ABS Black EDM IP20

Product Code: KP1-06

  • Surge protector with 10 kA current rating
  • Compact size: 21mm x 53.3mm x 9.5mm
  • Operates in -40 to 85°C temperature range
  • Meets IEC, UL, and AS/NZS standards
  • Quick response time of less than 5 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Krone Protector
Brand
Novaris
Series
KP KRONE-LSA
Application
Signal, Network and CCTV

Electrical

No. of Lines/Pairs
1 pair
Voltage Protection Level Up
10V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
6 V AC / 8 V DC

Dimensions & Physical Data

Depth
21mm
Height
54mm
Width
10mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
