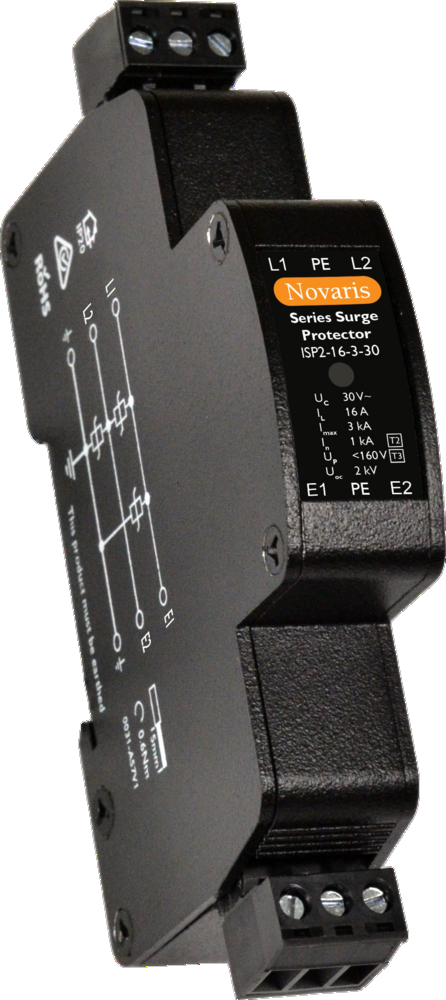

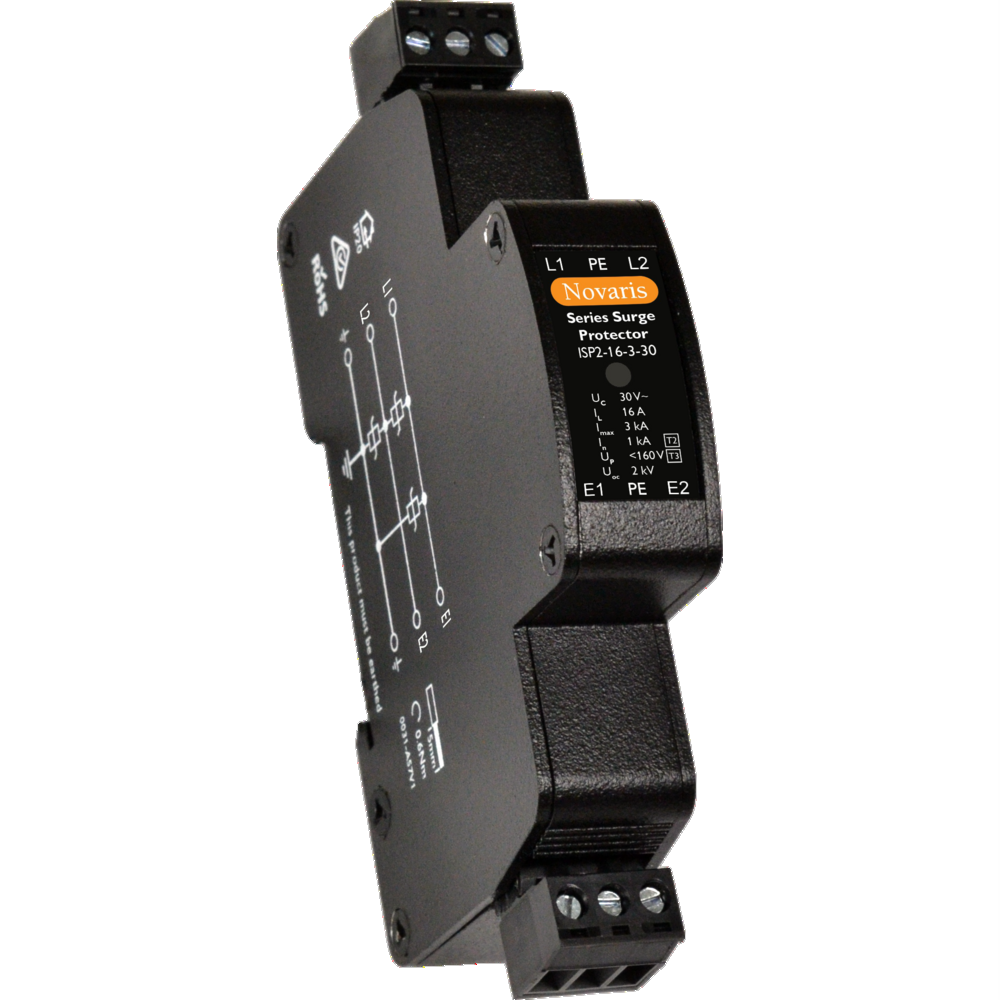

Novaris ISP2-16-3-30 ISP Isolated Series Protector 2-P 2 PH 16A 24VAC TS35 18mm W 115mm D 69mm H Aluminium IP20

Product Code: ISP2-16-3-30

  • Surge protector for 24 VAC systems
  • LED status display for easy monitoring
  • Mounts on TS35 DIN rail, compact 18 mm width
  • Fast response time of <5 ns for effective protection
  • Complies with IEC, AS/NZS, UL, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isp2 Series Surge Protectors
Brand
Novaris
Series
ISP2
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Max. Backup Fuse
16A
Max. Load Current
16A
No. of Phases/Lines
2
Modes of Protection
L1-L2, L1-PE, L2-PE
Nominal Voltage
24V AC
Voltage Protection Level Up
<160V
Max. Discharge Current Imax (8/20µs)
3kA
Short Circuit Current Rating
10kA
Nominal Discharge Current Inom (8/20µs)
1kA
Max. Continuous Operating Voltage
30 V AC, 40 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
115mm
Height
69mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
