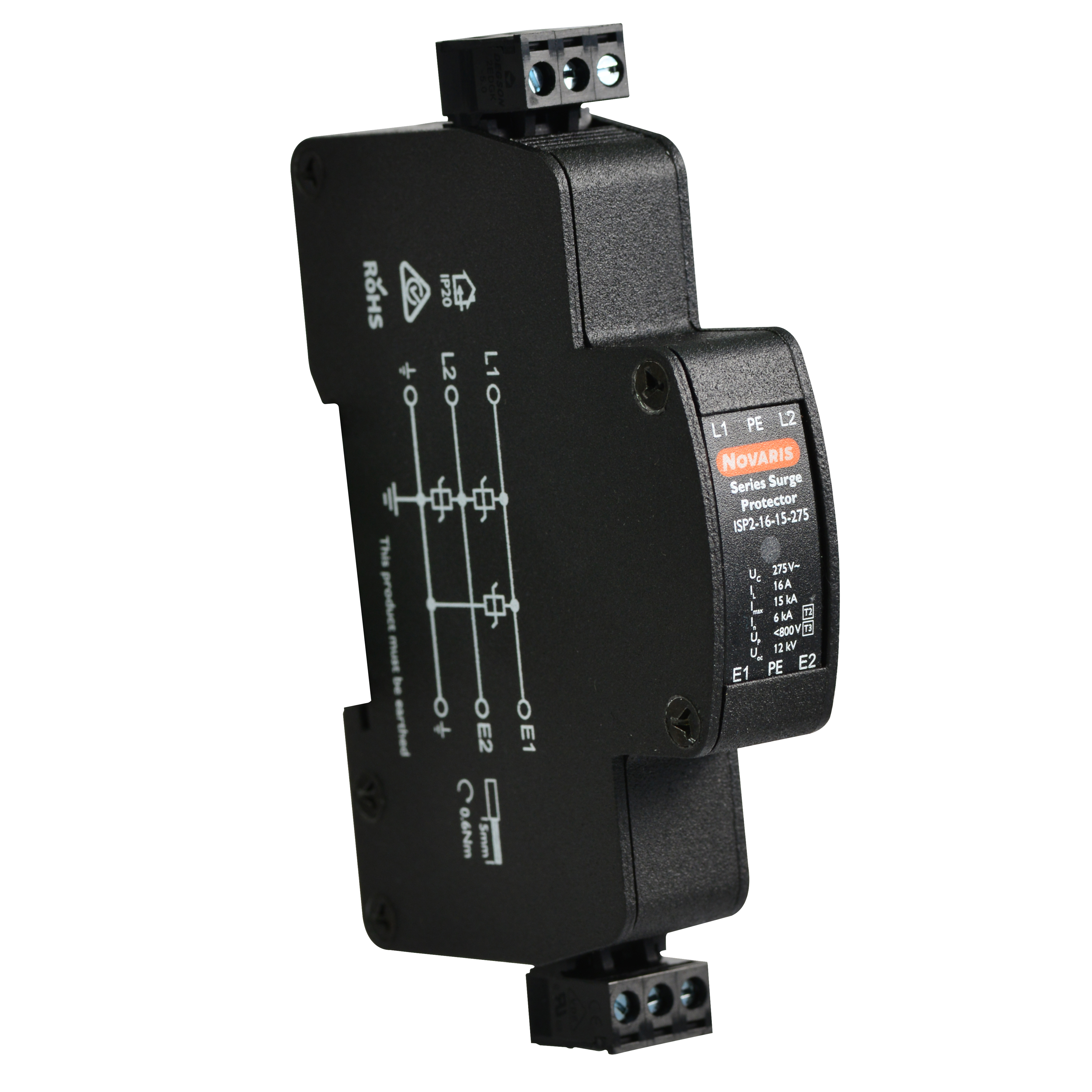

Novaris ISP2-16-15-275 ISP Isolated Series Protector 2-P 2 PH 16A 230VAC TS35 18mm W 115mm D 69mm H Aluminium IP20

Product Code: ISP2-16-15-275

  • Rated for 230 VAC, 16 A, 2-phase systems
  • Quick response time: <5 ns (L-L), <5 ns (L-PE)
  • Compact design: 18 mm wide, DIN rail mount
  • Meets IEC, AS/NZS, UL & IEEE standards
  • Operates in -40 to 70°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isp2 Series Surge Protectors
Brand
Novaris
Series
ISP2
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Max. Backup Fuse
16A
Max. Load Current
16A
No. of Phases/Lines
2
Modes of Protection
L1-L2, L1-PE, L2-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
<800V
Max. Discharge Current Imax (8/20µs)
15kA
Short Circuit Current Rating
10kA
Nominal Discharge Current Inom (8/20µs)
6kA
Max. Continuous Operating Voltage
275 V AC, 380 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
115mm
Height
69mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
