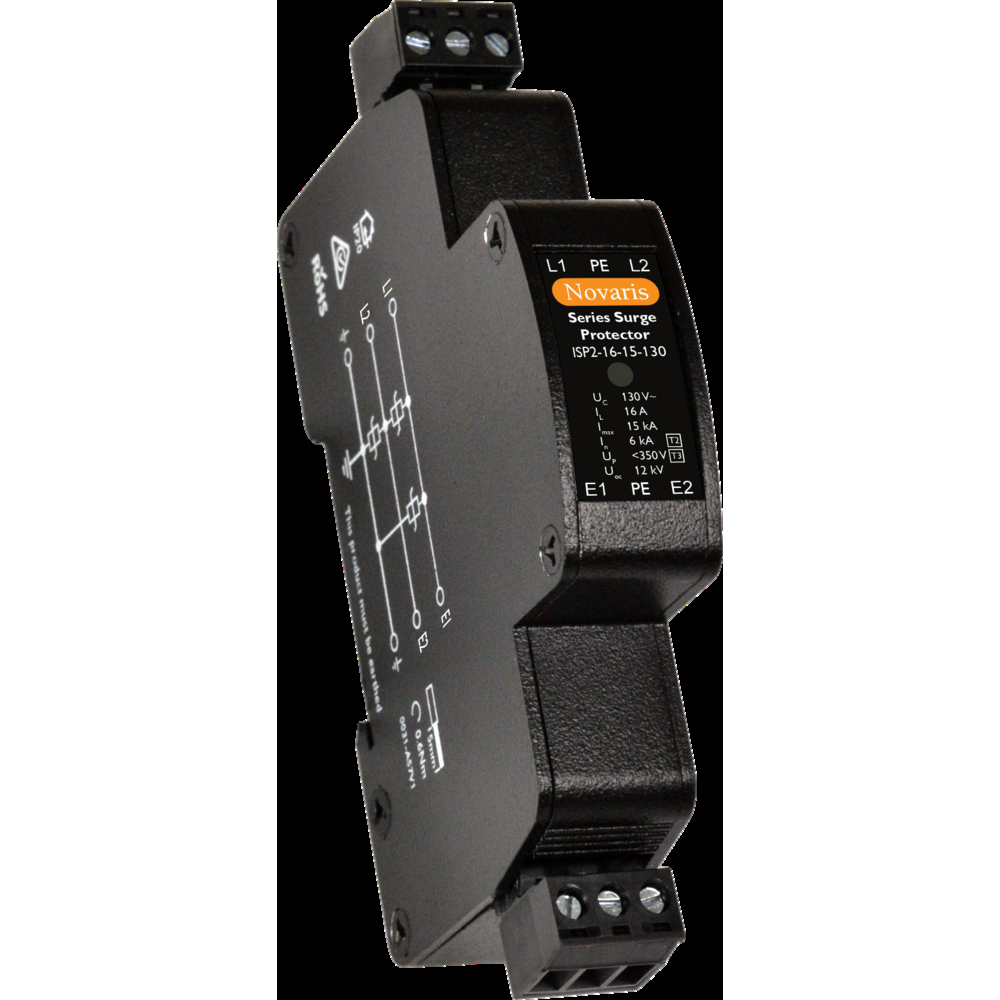

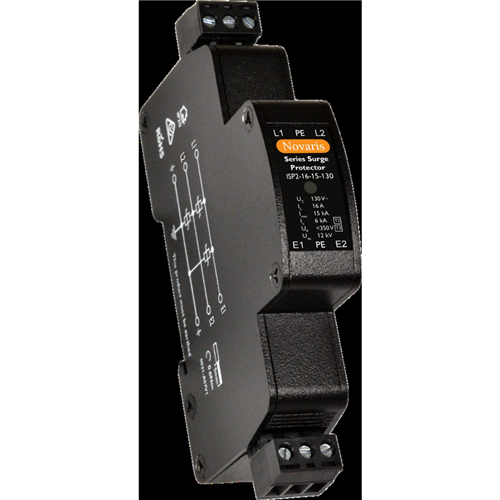

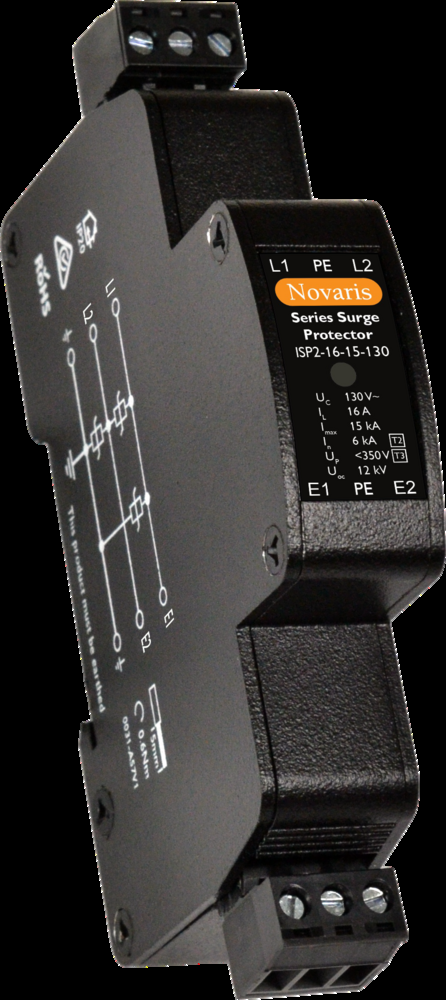

Novaris ISP2-16-15-130 ISP Isolated Series Protector 2 PH 16A 110VAC TS35 18mm W 115mm D 69mm H Aluminium IP20

Product Code: ISP2-16-15-130

  • Protects against surges with <5 ns response time
  • Suitable for 110 VAC, 16 A, 2-phase systems
  • Compact design: 18 mm width, DIN rail mount
  • LED status display for easy monitoring
  • Complies with IEC, AS/NZS, UL, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isp2 Series Surge Protectors
Brand
Novaris
Series
ISP2
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Max. Backup Fuse
16A
Max. Load Current
16A
No. of Phases/Lines
2
Modes of Protection
L1-L2, L1-PE, L2-PE
Nominal Voltage
110V AC
Voltage Protection Level Up
<350V
Max. Discharge Current Imax (8/20µs)
15kA
Short Circuit Current Rating
10kA
Nominal Discharge Current Inom (8/20µs)
6kA
Max. Continuous Operating Voltage
130 V AC, 180 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
115mm
Height
69mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
