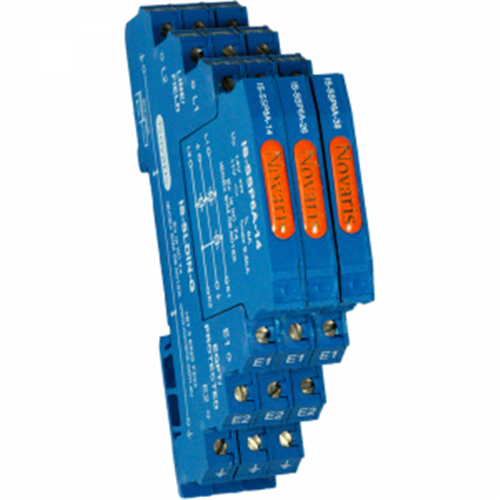

Novaris IS-SSP6A-38-G Surge Protector With Base 4.8kA 9.6kA 38VDC TS35 IP20

Product Code: IS-SSP6A-38-G

  • Surge protection up to 9.6 kA common mode
  • Compact size: 102x68x7 mm, lightweight at 35 g
  • Quick response time under 5 ns
  • Easy TS35 DIN Rail mounting
  • Meets IEC and UL standards for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Intrinsically Safe Protectors
Brand
Novaris
Series
IS-SSP6 A
Application
Signal, Process Control Hazardous Areas, Input / Output / Power

Electrical

Max. Load Current
6:00 AM
No. of Phases/Lines
1 pair
Modes of Protection
Transverse and Common
Voltage Protection Level Up
110 V, 380 V
Max. Discharge Current Imax (8/20µs)
5 kA
Max. Continuous Operating Voltage
30 V AC, 38 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102 mm
Height
68 mm
Width
7 mm

Environmental

Operating Temperature
-20°C to 40°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
