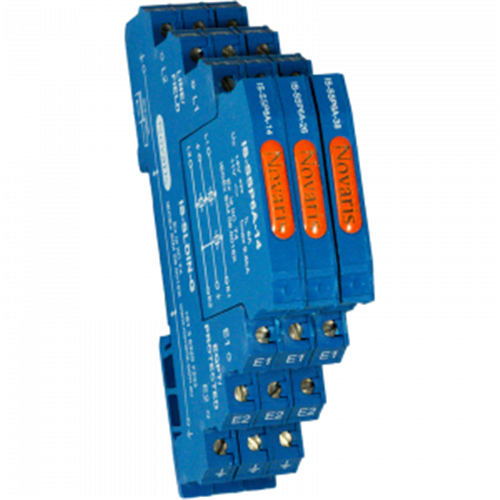

Novaris IS-SSP6A-38-EC90 Surge Protector With Base 4.8kA 9.6kA 38VDC TS35 IP20

Product Code: IS-SSP6A-38-EC90

  • Protects against surges up to 9.6 kA
  • Compact size: 102x68x7 mm
  • Quick response time: <5 ns
  • Easy DIN rail mounting
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector With Base
Brand
Novaris
Series
IS-SSP6 A
Application
Signal, Process Control Hazardous Areas, Input / Output / Power

Electrical

Max. Load Current
6:00 AM
Modes of Protection
Transverse and Common
Voltage Protection Level Up
110 V, 380 V
Max. Discharge Current Imax (8/20µs)
5 kA
Max. Continuous Operating Voltage
30 V AC, 38 V DC

Dimensions & Physical Data

Depth
68 mm
Height
102 mm
Width
7 mm

Documents

IPD Product Catalogue V17
