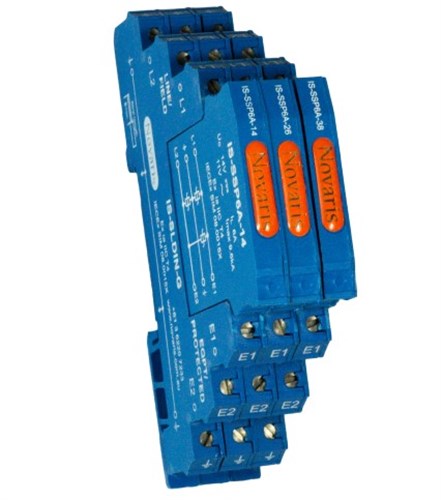

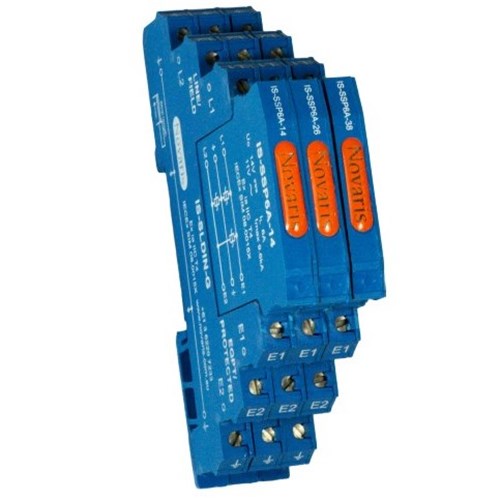

Novaris IS-SSP6A-26-G Surge Protector 4.8kA 9.6kA 26VDC TS35 IP20

Product Code: IS-SSP6A-26-G

  • Protects signal lines up to 4.8 kA per line
  • IP20-rated for secure installation
  • Quick response time under 5 ns
  • Fits TS35 DIN Rail, compact size
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Intrinsically Safe Protectors
Brand
Novaris
Series
IS-SSP6 A
Application
Signal, Process Control Hazardous Areas, Input / Output / Power

Electrical

Max. Load Current
6:00 AM
No. of Phases/Lines
1 pair
Modes of Protection
Transverse and Common
Voltage Protection Level Up
65 V, 380 V
Max. Discharge Current Imax (8/20µs)
5 kA
Max. Continuous Operating Voltage
20 V AC, 26 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102 mm
Height
68 mm
Width
7 mm

Environmental

Operating Temperature
-20°C to 40°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
