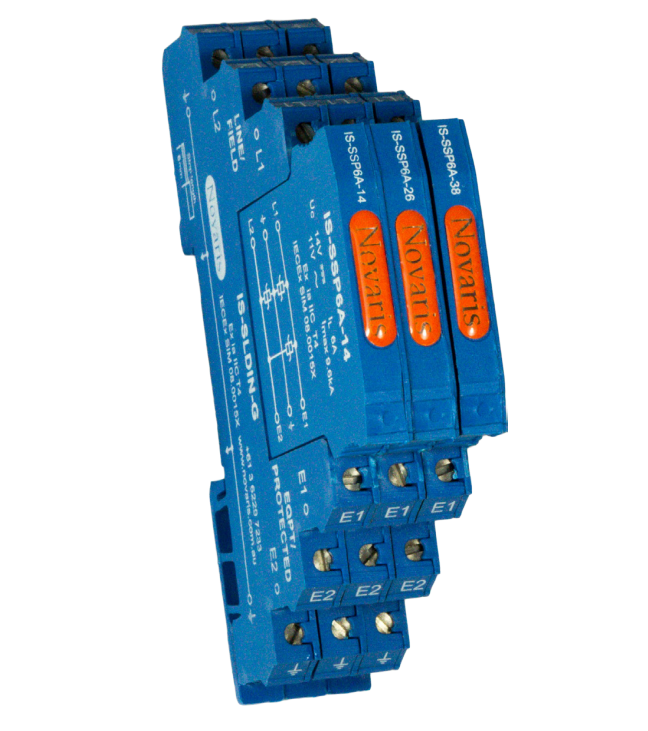

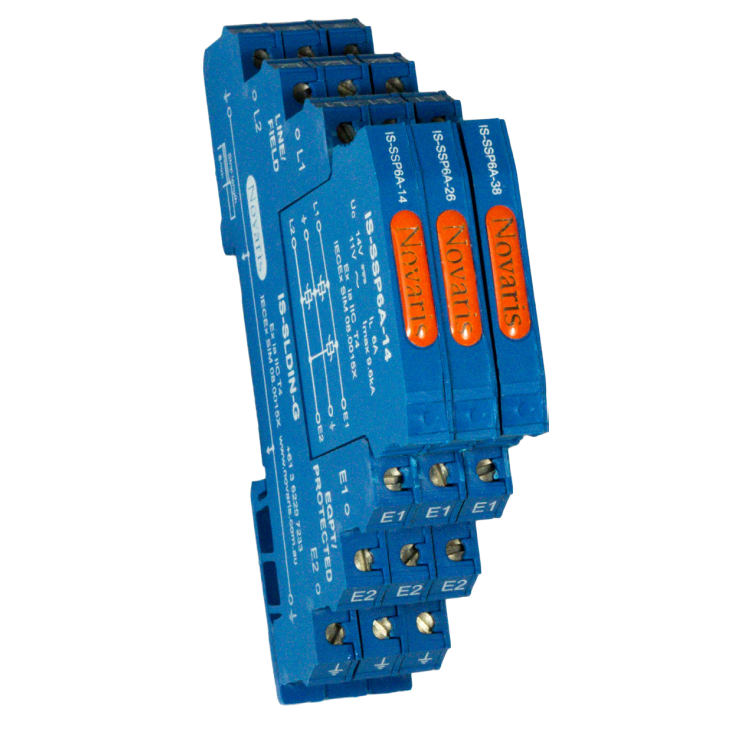

Novaris IS-SSP6A-14 Surge Protector 4.8kA 9.6kA 14VDC TS35 IP20

Product Code: IS-SSP6A-14

  • Surge protection for 14 VDC systems
  • Handles 4.8 kA per line, 9.6 kA common mode
  • Compact design; fits TS35 DIN rail
  • Fast response time under 5 ns
  • Polycarbonate build with IP20 rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
Novaris
Series
IS-SSP6 A
Application
Signal, Process Control Hazardous Areas, Input / Output / Power

Electrical

Max. Load Current
6:00 AM
Modes of Protection
Transverse and Common
Voltage Protection Level Up
45 V, 380 V
Max. Discharge Current Imax (8/20µs)
5 kA
Max. Continuous Operating Voltage
11 V AC, 14 V DC

Dimensions & Physical Data

Depth
68 mm
Height
102 mm
Width
7 mm
