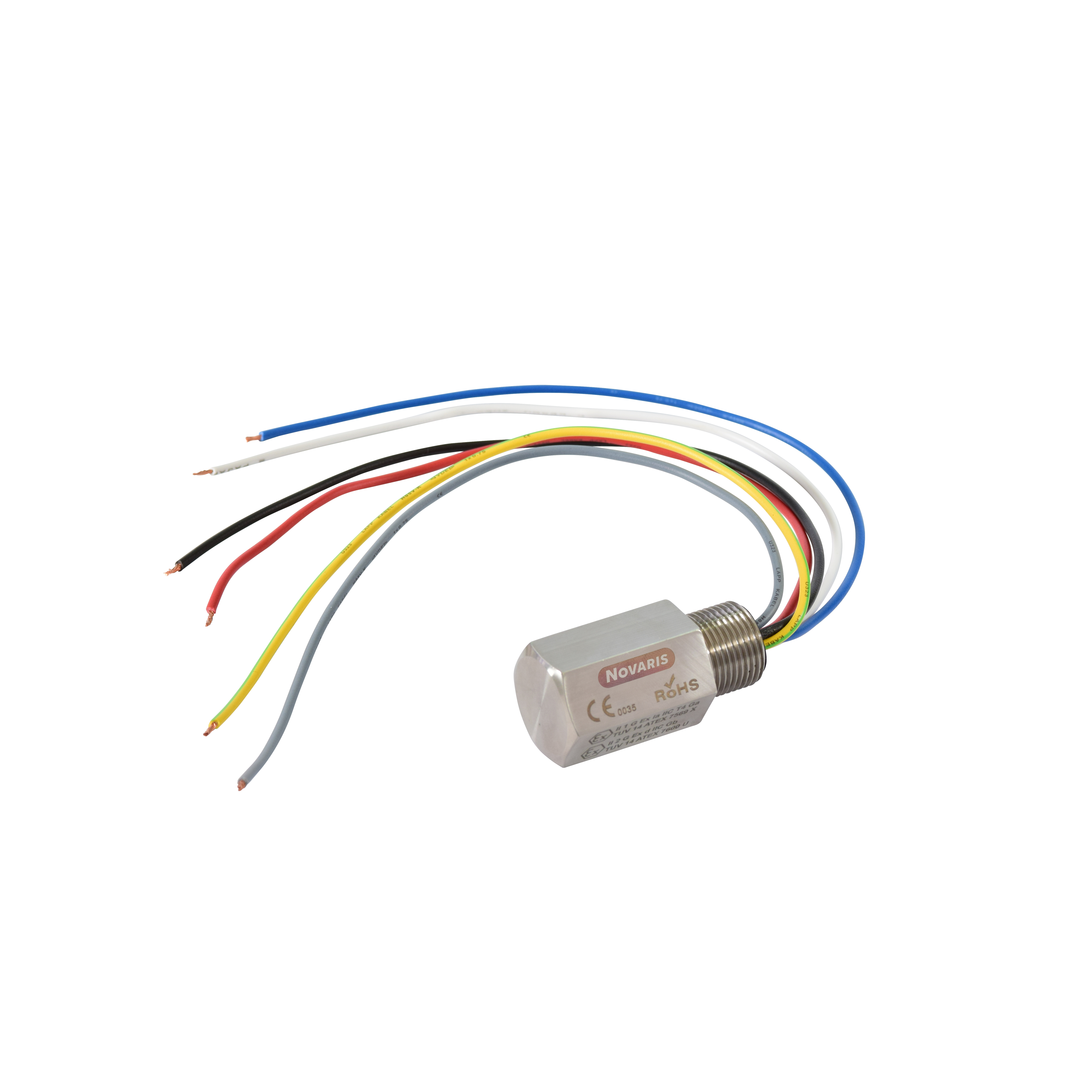

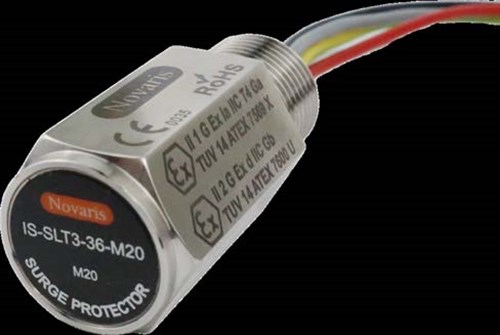

Novaris IS-SLT3-36-M20 Surge Protector 5kA 10kA 36VDC Shunt M20x1.5 Thread SS IP67

Product Code: IS-SLT3-36-M20

  • Protects signal lines with 5 kA per line, 10 kA common mode
  • IP67-rated for robust environmental protection
  • Quick response time of less than 5 ns
  • Durable stainless steel construction
  • Compact size: 53 mm x 24 mm x 27 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Is - Slt Intrinsically Safe
Brand
Novaris
Series
IS-SLT3
Application
Signal, Process Control Hazardous Areas, Field Instruments

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair + center
Voltage Protection Level Up
75V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
24 V AC / 34 V DC

Dimensions & Physical Data

Depth
53mm
Height
29mm
Width
25mm

Environmental

Operating Temperature
-20°C to 40°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
