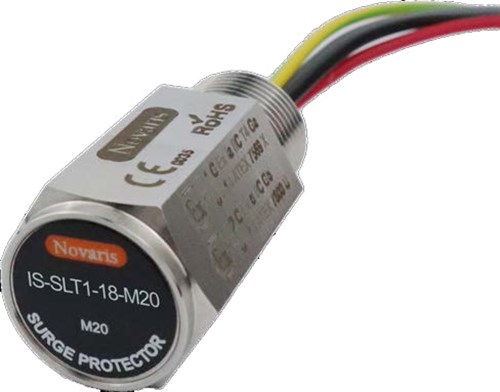

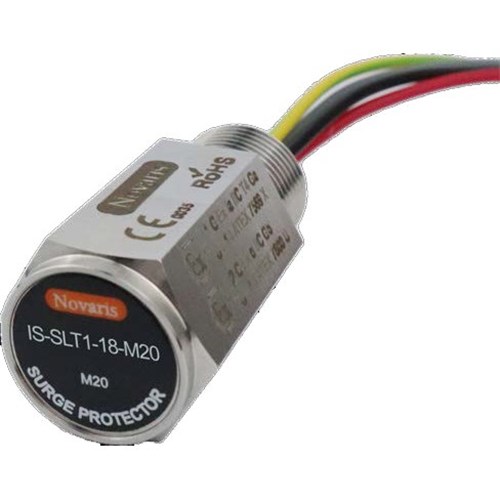

Novaris IS-SLT1-18-M20 Threaded Signal Surge Protector 5kA 10kA 18VDC Shunt M20x1.5 Thread SS IP67

Product Code: IS-SLT1-18-M20

  • Rated for 18 VDC, 2.2 W power
  • Handles up to 10 kA surge current
  • IP67 protection, ideal for harsh environments
  • Compact M20 x 1.5 thread mounting
  • Fast response time under 5 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Is - Slt Intrinsically Safe
Brand
Novaris
Series
IS-SLT1
Application
Signal, Process Control Hazardous Areas, Field Instruments

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
50V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
11 V AC / 16 V DC

Dimensions & Physical Data

Depth
53mm
Height
29mm
Width
25mm

Environmental

Operating Temperature
-20°C to 40°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
