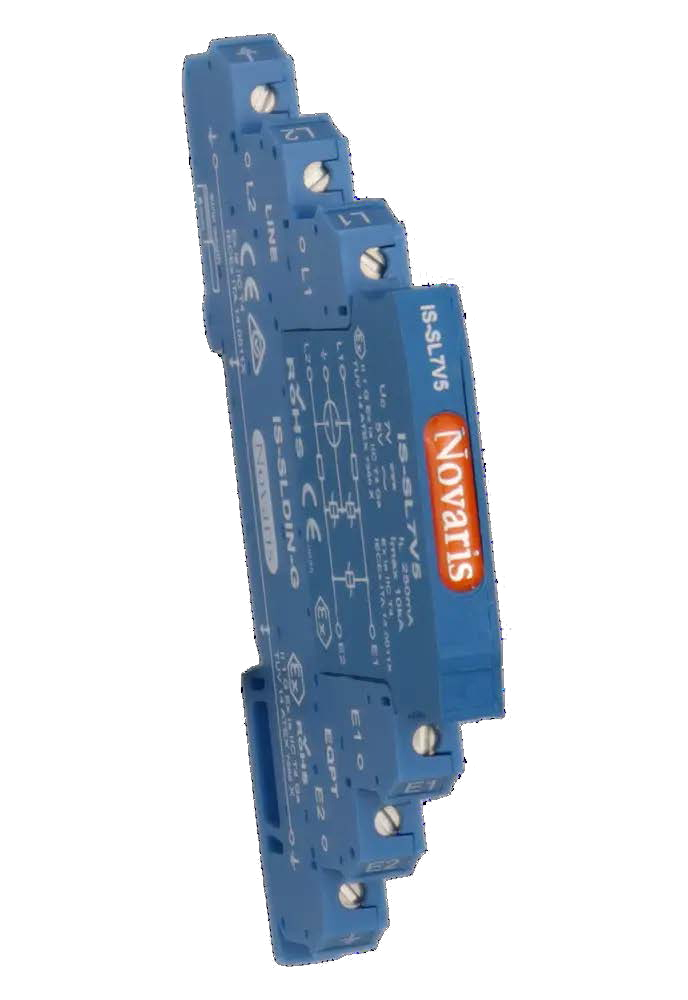

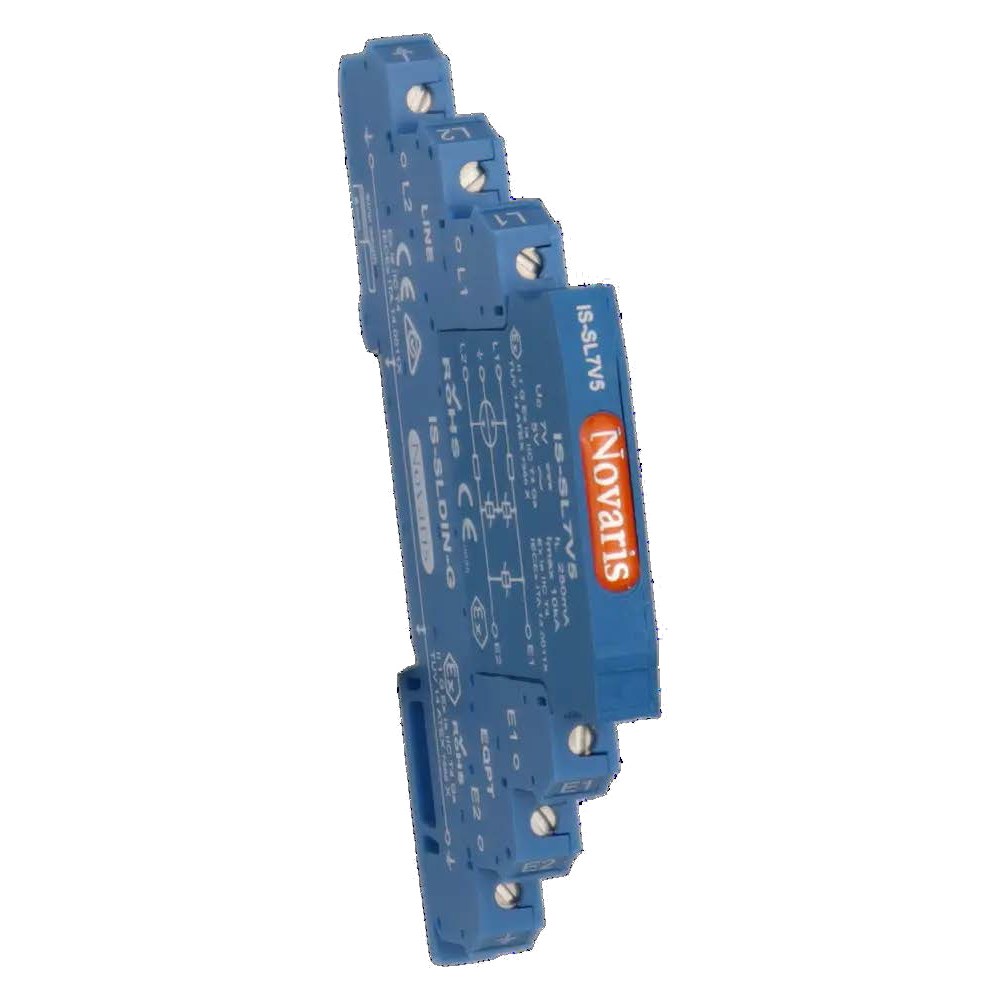

Novaris IS-SL7V5-G Signal Surge Protector With Base 5kA 10kA 7VDC TS35 IP20

Product Code: IS-SL7V5-G

  • Surge protection for 1 pair of lines
  • Compact 7mm width, DIN rail mount
  • Fast response time under 5 ns
  • Rated current: 5 kA per line, 10 kA common mode
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Intrinsically Safe Protectors
Brand
Novaris
Series
IS-SL
Application
Signal, Process Control Hazardous Areas, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
5 V AC / 7 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102mm
Height
68mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
