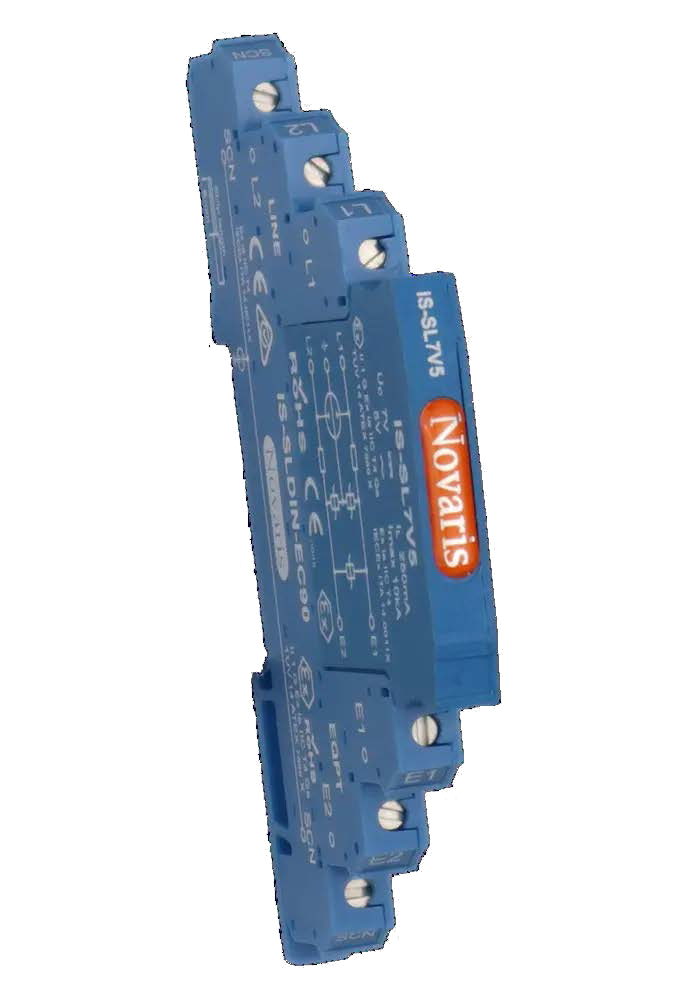

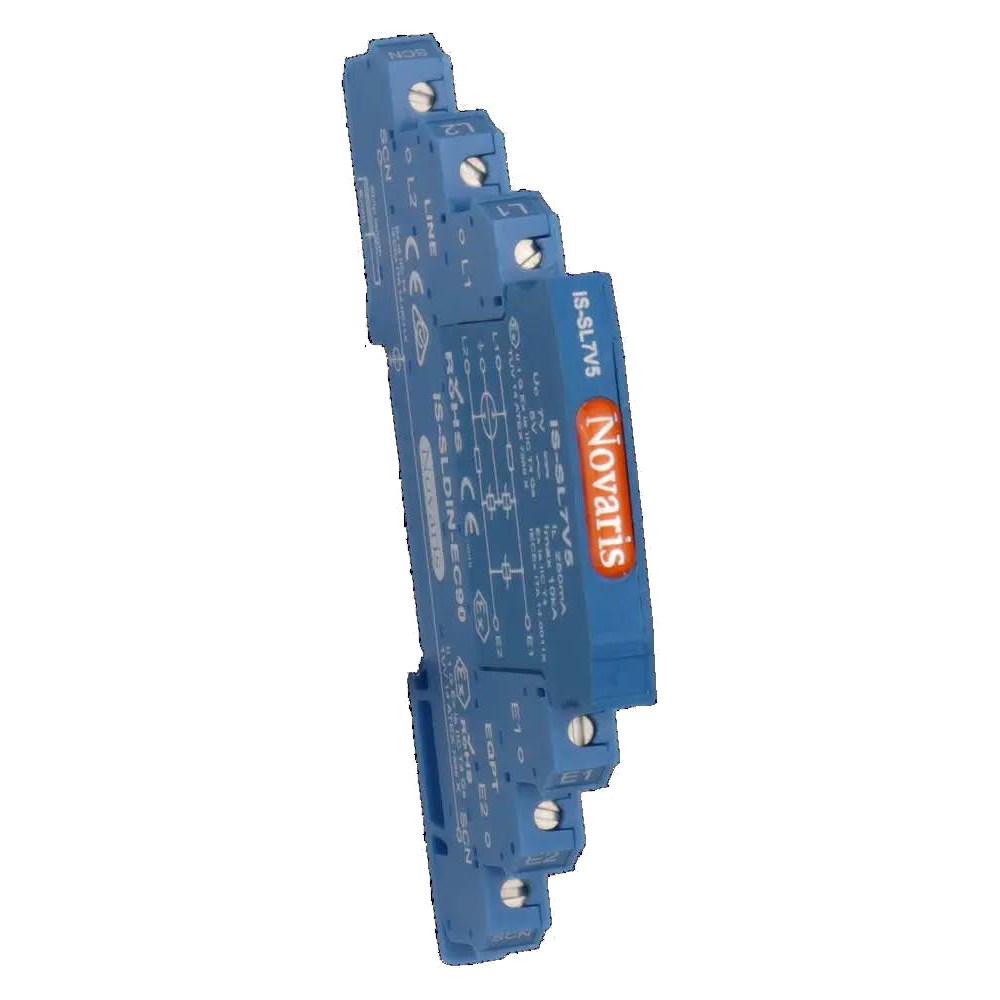

Novaris IS-SL7V5-EC90 Signal Surge Protector With Base 5kA 10kA 7VDC TS35 IP20

Product Code: IS-SL7V5-EC90

  • Surge protector with 5 kA line current
  • Compact size: 7 mm width, 68 mm height
  • Quick response time: <5 ns
  • Mounts on TS35 DIN Rail
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Intrinsically Safe Protectors
Brand
Novaris
Series
IS-SL
Application
Signal, Process Control Hazardous Areas, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
5 V AC / 7 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102mm
Height
68mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
