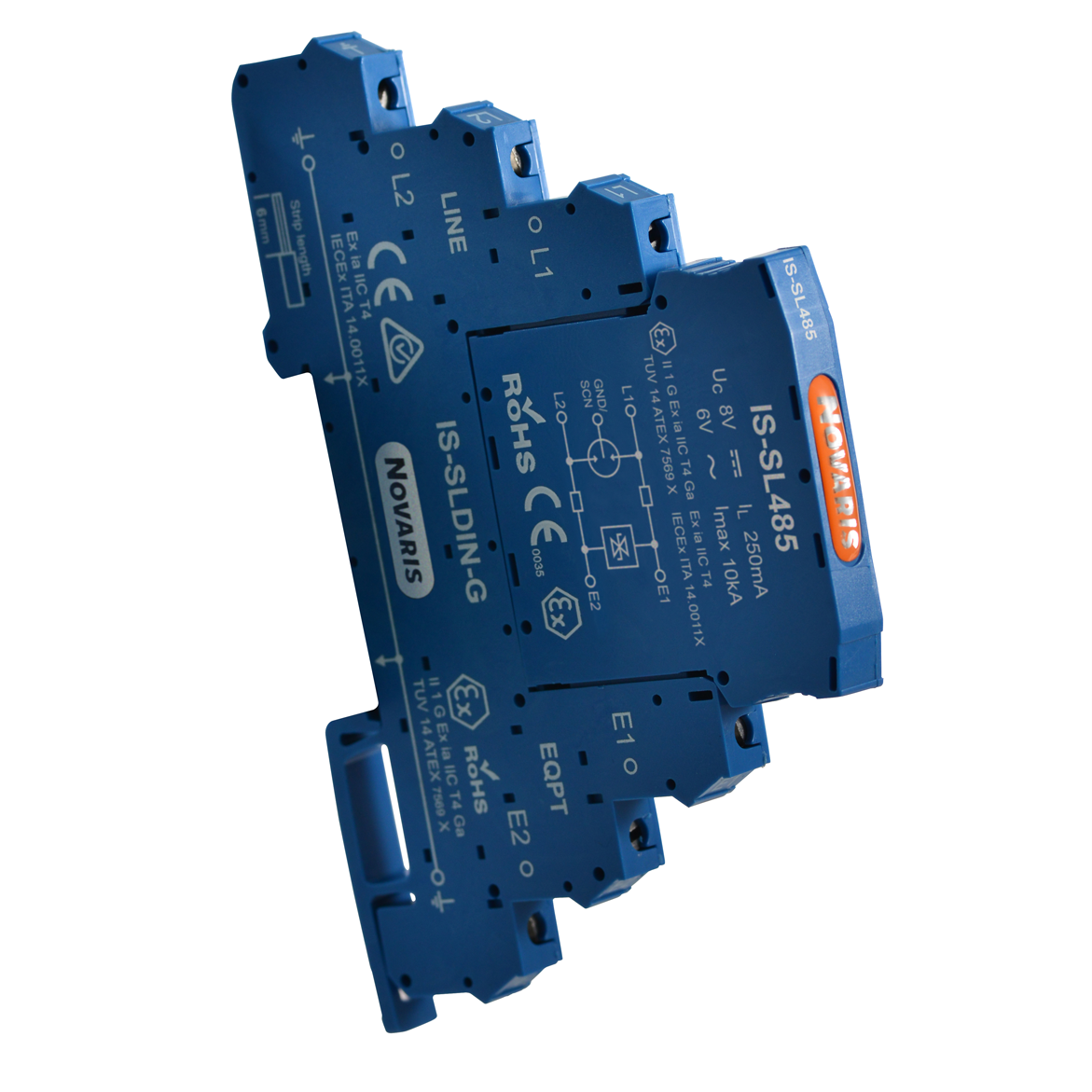

Novaris IS-SL485-G Signal Surge Protector With Base 5kA 10kA 8VDC TS35 IP20

Product Code: IS-SL485-G

  • Compact 7mm width for easy DIN rail mounting
  • High surge capacity with 5kA per line, 10kA common mode
  • Fast response time of less than 5ns
  • Wide operating temp range: -20 to 40°C
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Intrinsically Safe Protectors
Brand
Novaris
Series
IS-SL
Application
Signal, Process Control Hazardous Areas, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
6 V AC / 8 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102mm
Height
68mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
