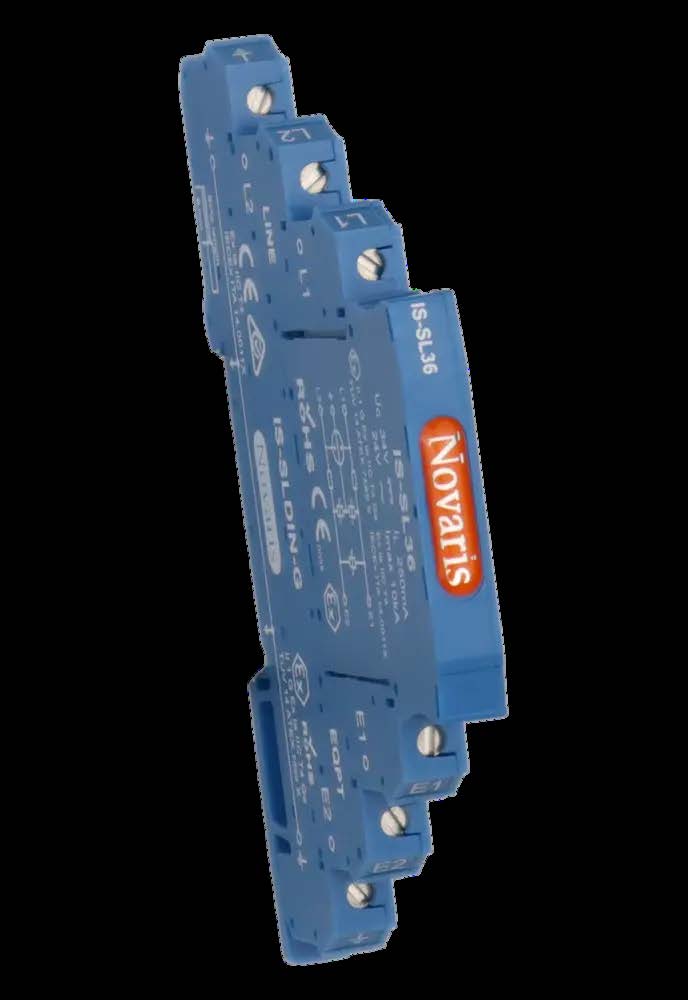

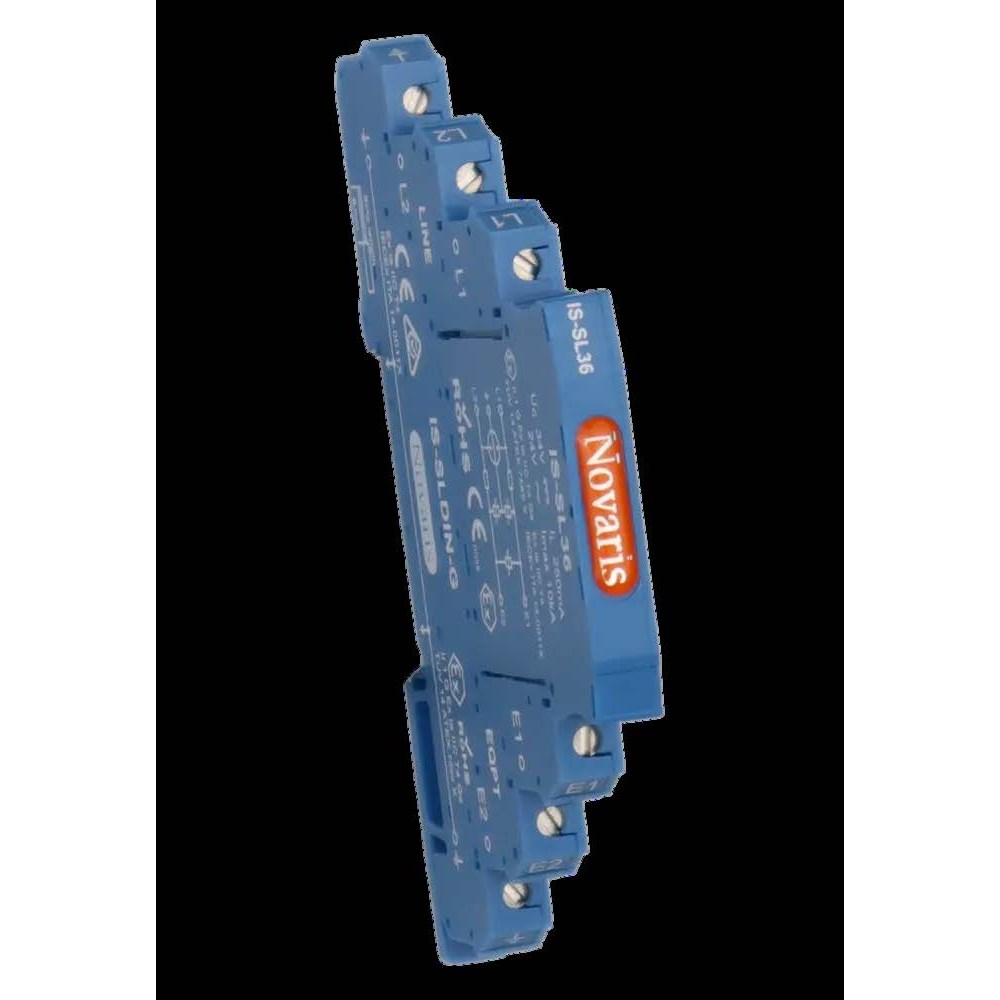

Novaris IS-SL36-G Surge Protector 5kA 10kA 34VDC TS35 Polycarbonate IP20

Product Code: IS-SL36-G

  • Protects signal lines up to 34 VDC
  • High surge capacity: 5 kA per line
  • Compact design: only 7 mm wide
  • Quick response time: <5 ns
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
Novaris
Series
SL
Application
PLCs, fire and security systems, telecommunications, telemetry systems, SCADA and other industrial monitoring and control equipment.

Electrical

Max. Discharge Current Imax (8/20µs)
5kA

Mechanical

Terminal Size
2.5mm²
Connection/Termination
Series

Dimensions & Physical Data

Depth
68mm
Height
102mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
