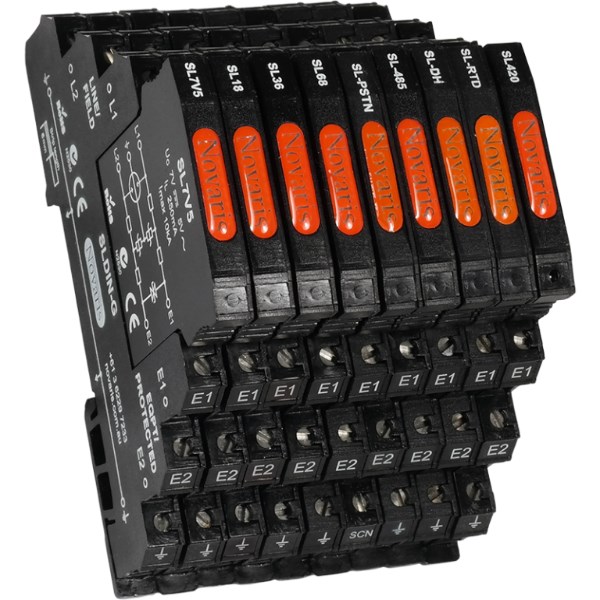

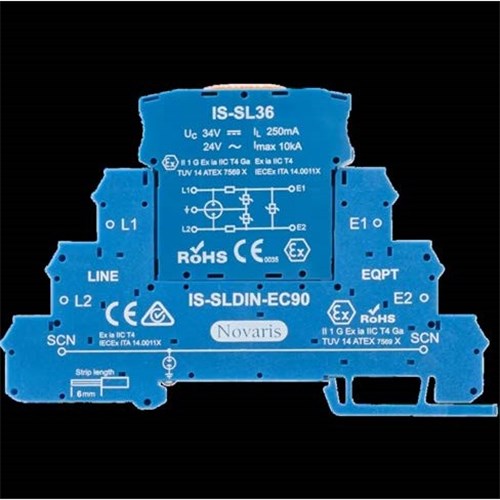

Novaris IS-SL36-EC90 Surge Protector 5kA 10kA 34VDC TS35 IP20

Product Code: IS-SL36-EC90

  • Protects signal lines up to 34 VDC.
  • Handles 5 kA per line, 10 kA common mode.
  • Compact design: 7 mm width.
  • Quick response time under 5 ns.
  • Mounts easily on TS35 DIN rail.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Intrinsically Safe Protectors
Brand
Novaris
Series
IS-SL
Application
Signal, Process Control Hazardous Areas, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
40V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
24 V AC / 34 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102mm
Height
68mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
