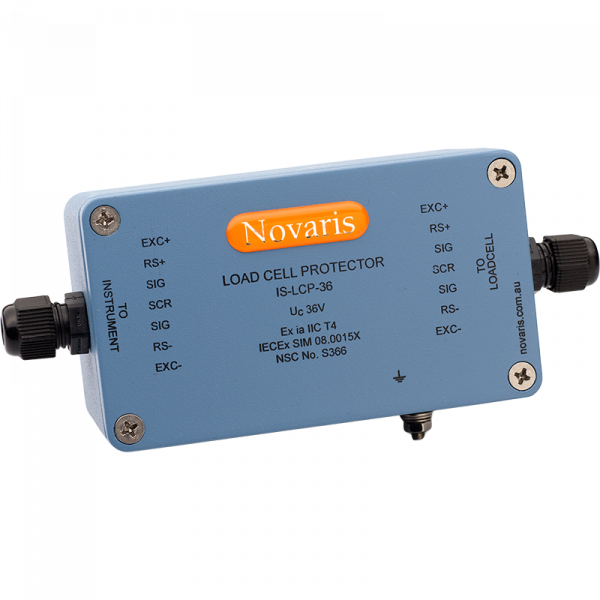

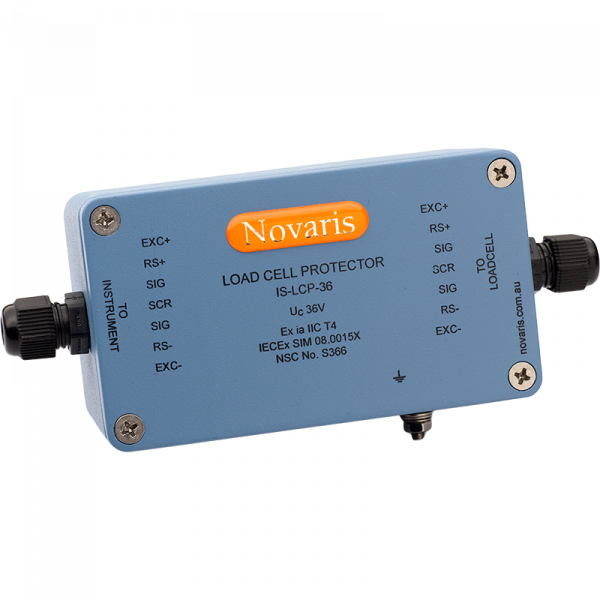

Novaris IS-LCP-36 Load Cell Protector 0.25kA 36VDC 116mm W 56mm D 65mm H Aluminium IP65

Product Code: IS-LCP-36

  • Surge protection for 36 VDC systems
  • Durable IP65 aluminium housing
  • Operates in -40 to 85°C range
  • Protects in transverse & common modes
  • Compact size: 116x65x56 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Is - Lcp Intrinsically Safe Load Cell Protector
Brand
Novaris
Series
IS-LCP
Application
Signal, Process Control Hazardous Areas, Loadcells

Electrical

No. of Lines/Pairs
4 or 6
Voltage Protection Level Up
80V
Max. Discharge Current Imax (8/20µs)
0.25kA
Max. Continuous Operating Voltage
24 V AC / 36 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
160mm
Height
56mm
Width
66mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
