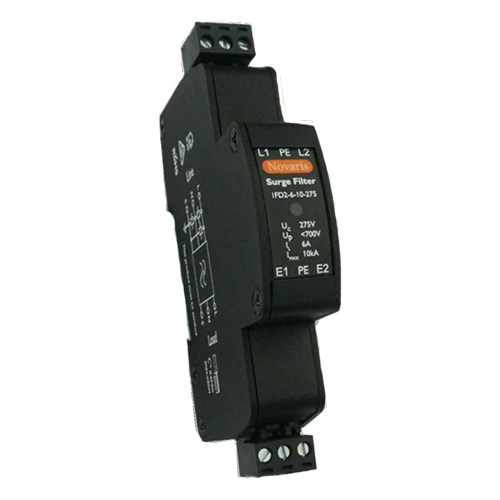

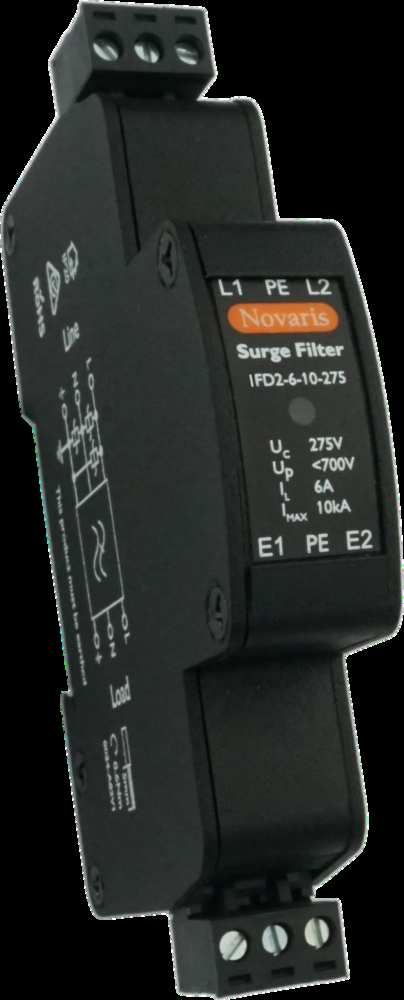

Novaris IFD2-6-10-275 Surge Filter 2-P 2 PH 6A 230VAC TS35 Aluminium IP20

Product Code: IFD2-6-10-275

  • Surge filter for 230 VAC systems
  • Compact size: 18mm width, 69mm height
  • LED display for power and thermal alerts
  • IP20 protection, TS35 DIN rail mountable
  • Operates in -40 to 70°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two Phase DIN Mount Surge Filter
Brand
Novaris
Series
IFD2
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Max. Backup Fuse
6:00 AM
Max. Load Current
6:00 AM
No. of Phases
2
Modes of Protection
(+)-(-), (+)-PE, (-)-PE
Nominal Voltage
230 V AC
Voltage Protection Level Up
700 V
Max. Discharge Current Imax (8/20µs)
10 kA
Nominal Discharge Current Inom (8/20µs)
6 kA
Max. Continuous Operating Voltage
275 V AC, 350 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
115 mm
Height
69 mm
Width
18 mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
