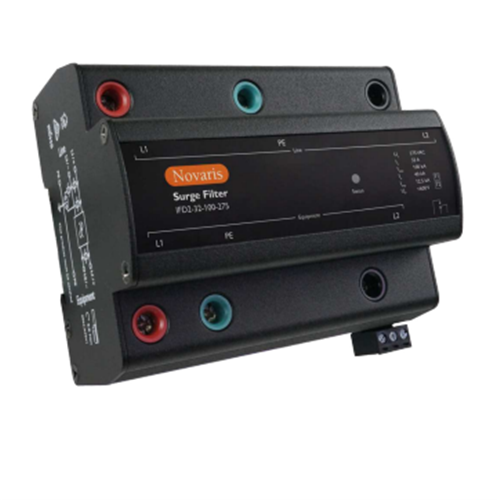

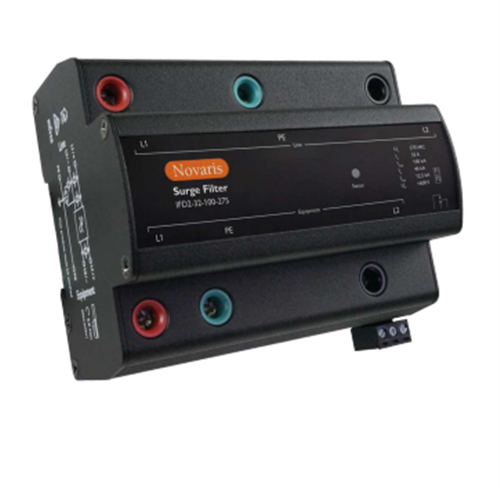

Novaris IFD2-32-100-275 Surge Filter 12.5kA 2 PH 32A 230VAC TS35 Aluminium IP20

Product Code: IFD2-32-100-275

  • Surge filter for 230 VAC, 32 A systems
  • LED display for power and thermal alerts
  • Compact size: 119x69x95 mm, IP20 rated
  • Fast response time of less than 100 ns
  • Protects with L-L, L-PE modes up to 12.5 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two Phase DIN Mount Surge Filter
Brand
Novaris
Series
IFD2
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
32A
Max. Load Current
32A
No. of Phases
2
Modes of Protection
L-L, L-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
1000V
Max. Discharge Current Imax (8/20µs)
100kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
275 V AC, 350 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
69mm
Width
119mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
