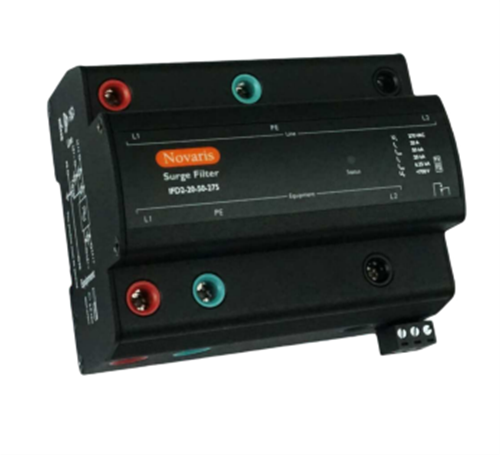

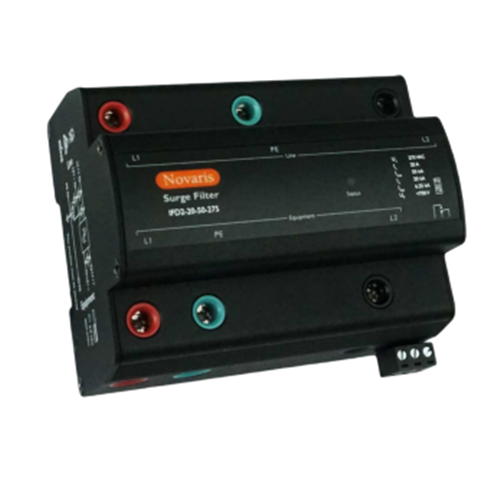

Novaris IFD2-20-50-275 Surge Filter 6.25kA 2 PH 20A 230VAC TS35 Aluminium IP20

Product Code: IFD2-20-50-275

  • 230 VAC, 20 A rated for robust performance
  • LED display for power and thermal failure alerts
  • IP20 protection with TS35 DIN Rail mounting
  • Quick response time of <100 ns
  • Durable aluminium construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two Phase DIN Mount Surge Filter
Brand
Novaris
Series
IFD2
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA
Max. Backup Fuse
20A
Max. Load Current
20A
No. of Phases
2
Modes of Protection
L-L, L-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
1000V
Max. Discharge Current Imax (8/20µs)
50kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
275 V AC, 350 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
69mm
Width
119mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
