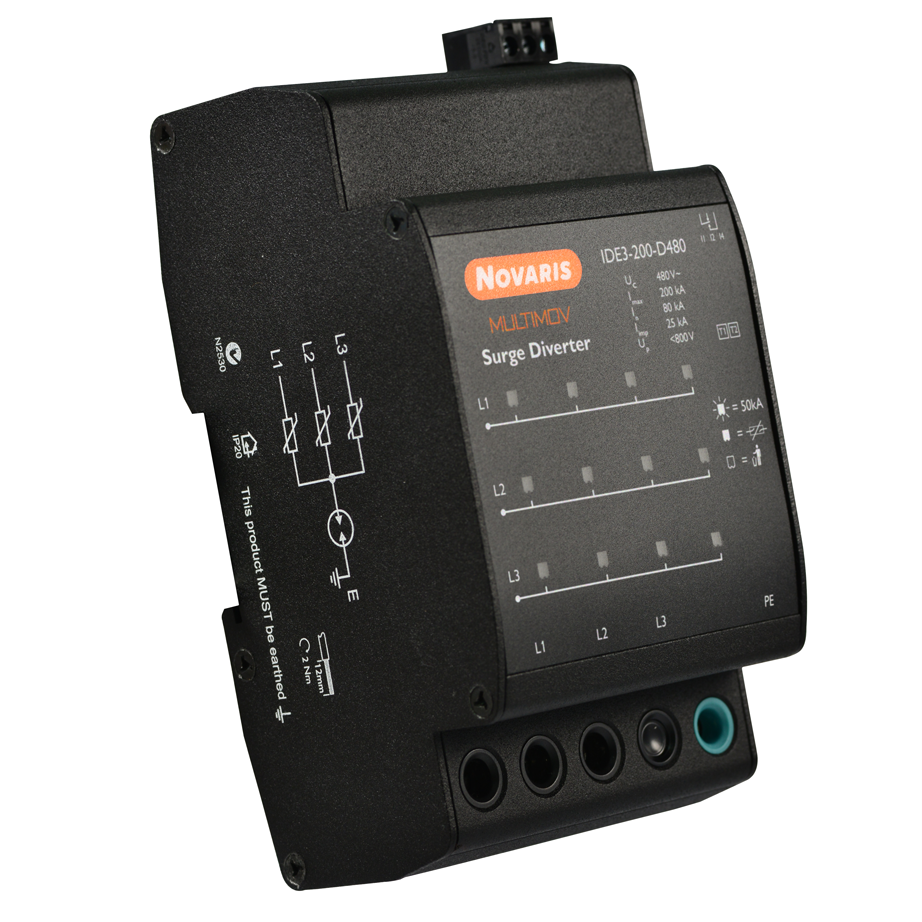

Novaris IDE3-200-D480 Surge Diverter 25kA 3 PH 200kA 400VAC TS35 IP20

Product Code: IDE3-200-D480

  • 3-phase surge protection up to 200 kA
  • LED display for power and thermal failure alerts
  • Compact size: 80x69x141 mm, fits TS35 DIN Rail
  • Complies with IEC 61643-11:2011 standards
  • Fast response time of <5 ns (L-PE)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Delta Connected Surge Diverter
Brand
Novaris
Series
IDE3
Application
Power, Main Switchboards, Commercial and Industrial

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
100A
Nominal Voltage
400V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
200kA
Short Circuit Current Rating
50kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
80kA
Max. Continuous Operating Voltage
480 V AC, 670 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
141mm
Height
69mm
Width
80mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
