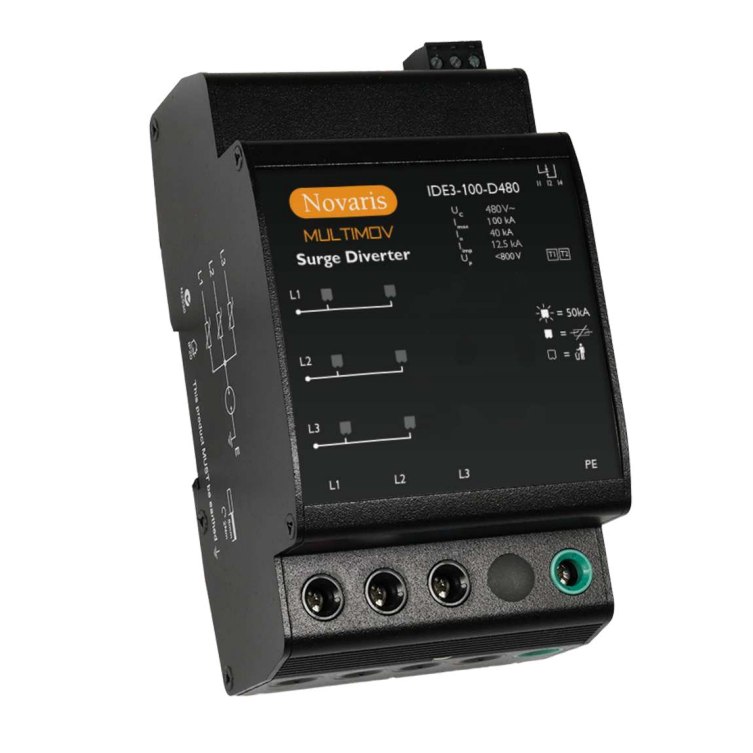

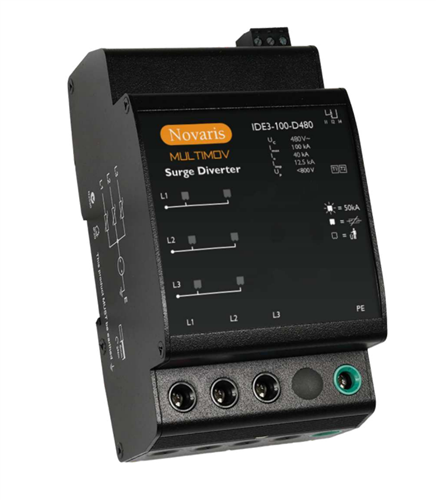

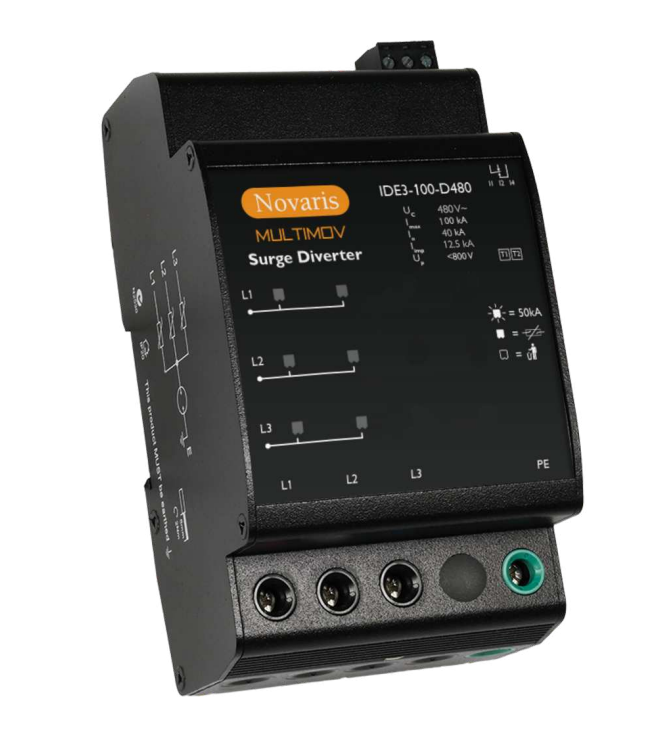

Novaris IDE3-100-D480 Surge Diverter 12.5kA 3 PH 100kA 400VAC Shunt TS35 Aluminium IP20

Product Code: IDE3-100-D480

  • Handles 400 VAC with 100 kA surge capacity
  • LED display for power and thermal failure
  • Compact DIN Rail mount, IP20 protection
  • Fast response time under 5 ns (L-PE)
  • Complies with IEC and AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Delta Connected Surge Diverter
Brand
Novaris
Series
IDE3
Application
Power, Main Switchboards, Commercial and Industrial

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
63A
Nominal Voltage
400V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
50kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
480 V AC, 670 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
141mm
Height
69mm
Width
80mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
