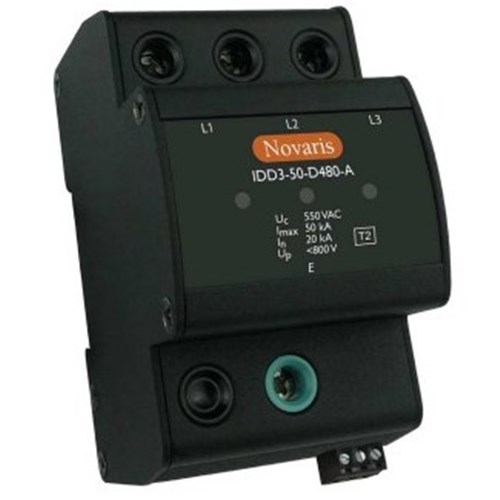

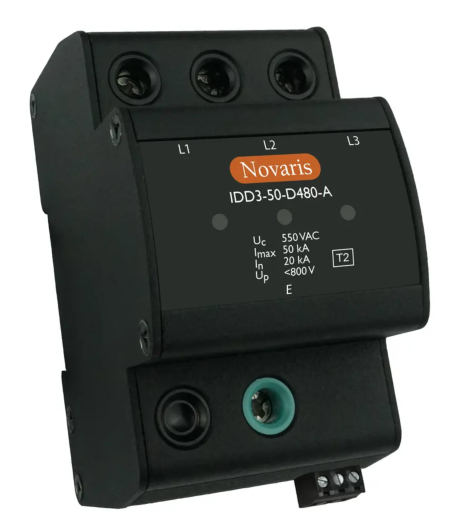

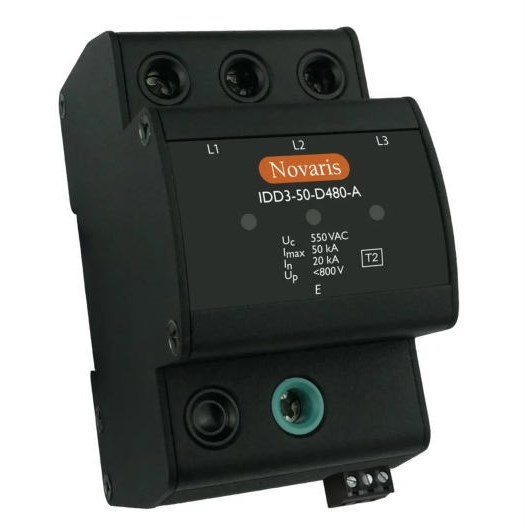

Novaris IDD3-50-D480-A Surge Protection 6.25kA 3 PH 50kA 400VAC TS35 IP20

Product Code: IDD3-50-D480-A

  • 400 VAC, 50 kA surge protection for 3-phase systems
  • LED display shows power and thermal failure status
  • Easy TS35 DIN Rail mounting system
  • Durable aluminium with IP20 protection rating
  • Fast response time of <5 ns (L-PE)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Delta Connected Surge Diverter
Brand
Novaris
Series
IDD3
Application
Power, Distribution Boards and Domestic MSB, Commercial and Industrial

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA
Max. Backup Fuse
32A
Nominal Voltage
400V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
50kA
Short Circuit Current Rating
25kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
480 V AC, 670 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
