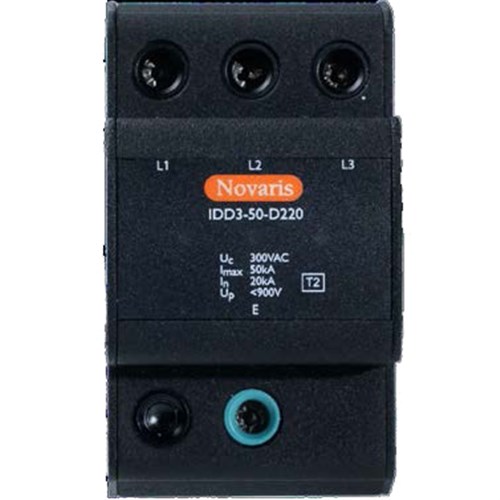

Novaris IDD3-50-D220 Surge Protection 4kA 3 PH 50kA 220VAC TS35 IP20

Product Code: IDD3-50-D220

  • Surge Diverter for 3-phase systems
  • Handles up to 50 kA surge (L-PE)
  • LED display for power & thermal failure
  • Compact size: 54x70x95 mm, fits TS35 DIN Rail
  • Complies with IEC, AS/NZS, IEEE, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Delta Connected Surge Diverter
Brand
Novaris
Series
IDD3
Application
Power, Distribution Boards and Domestic MSB, Commercial and Industrial

Electrical

Lightning Impulse Current Iimp (10/350µs)
4kA
Max. Backup Fuse
32A
Nominal Voltage
220V AC
Voltage Protection Level Up
1300V
Max. Discharge Current Imax (8/20µs)
50kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
300 V AC, 420 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
