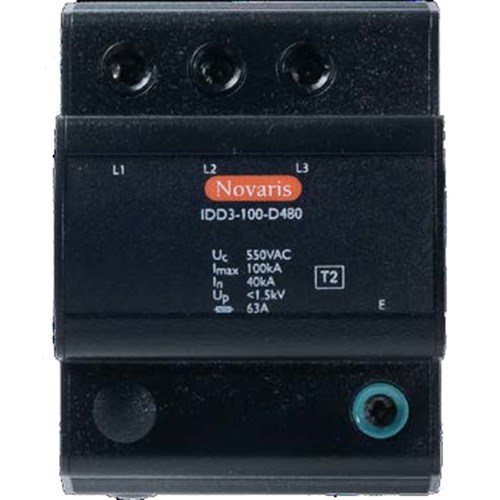

Novaris IDD3-100-D480 Surge Protection 12.5kA 3 PH 100kA 400VAC Shunt TS35 Aluminium IP20

Product Code: IDD3-100-D480

  • 400 VAC, 100 kA surge protection
  • LED display for power & thermal status
  • Compact size: 72x70x95 mm
  • Easy DIN Rail TS35 mounting
  • Complies with IEC, AS/NZS, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Delta Connected Surge Diverter
Brand
Novaris
Series
IDD3
Application
Power, Distribution Boards and Domestic MSB, Commercial and Industrial

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
63A
Nominal Voltage
400V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
480 V AC, 670 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
72mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
