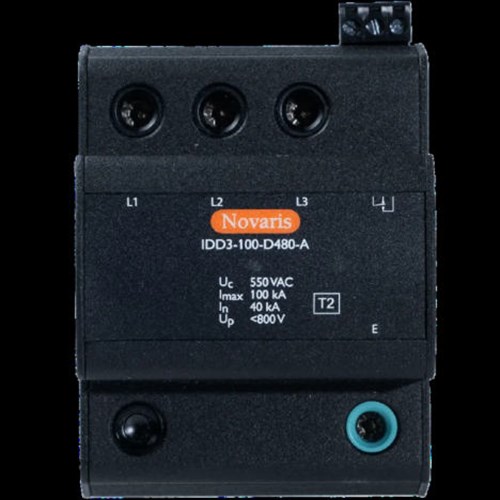

Novaris IDD3-100-D480-A Surge Protection 12.5kA 3 PH 100kA 400VAC TS35 IP20

Product Code: IDD3-100-D480-A

  • 400 VAC, 3-phase surge protection
  • High current capacity: 100 kA (L-PE)
  • LED indicators for power & thermal failure
  • Compact size: 72x70x95 mm for DIN rail
  • Fast response time <5 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
IDD3
Application
Indoor

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
63A
Nominal Voltage
400V AC
Voltage Protection Level Up
< 1500V @ In / 800V @ 1kV/ µs
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
40kA
No. of Poles
3P
Max. Continuous Operating Voltage
480 V AC/ 670 V DC

Mechanical

Terminal Size
16 mm²

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
72mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
