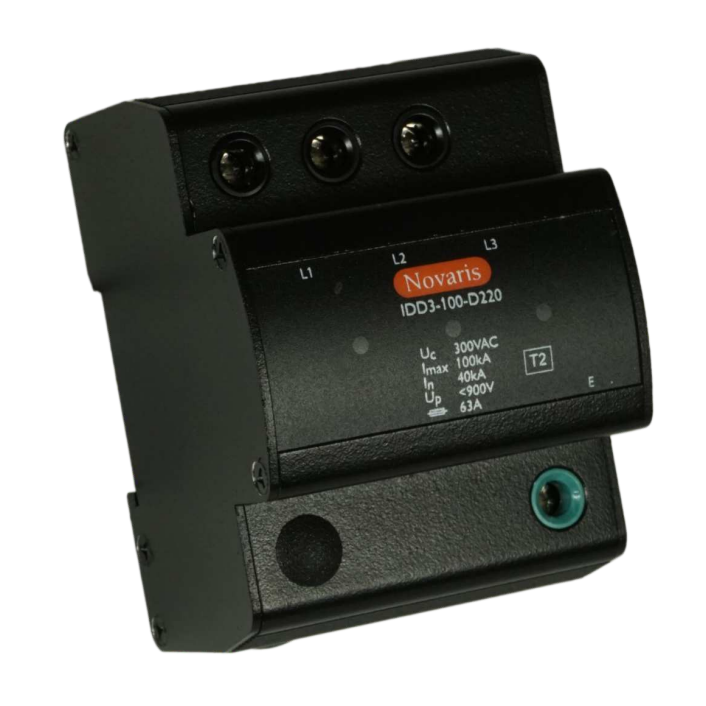

Novaris IDD3-100-D220 Surge Protection 8kA 3 PH 100kA 220VAC TS35 IP20

Product Code: IDD3-100-D220

  • Handles up to 100 kA surge current
  • LED display for power and thermal alerts
  • Compact size: 72x70x95 mm
  • Operates from -40 to 70°C
  • Complies with IEC, AS/NZS, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Delta Connected Surge Diverter
Brand
Novaris
Series
IDD3
Application
Power, Distribution Boards and Domestic MSB, Control Cabinets and Final Sub Boards

Electrical

Lightning Impulse Current Iimp (10/350µs)
8kA
Max. Backup Fuse
63A
Nominal Voltage
220V AC
Voltage Protection Level Up
1300V
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
300 V AC, 420 V DC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
72mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
