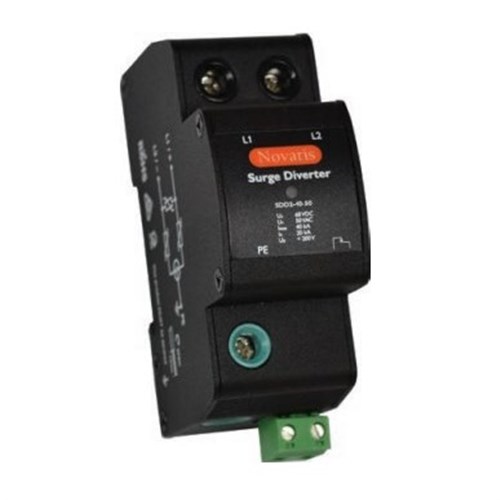

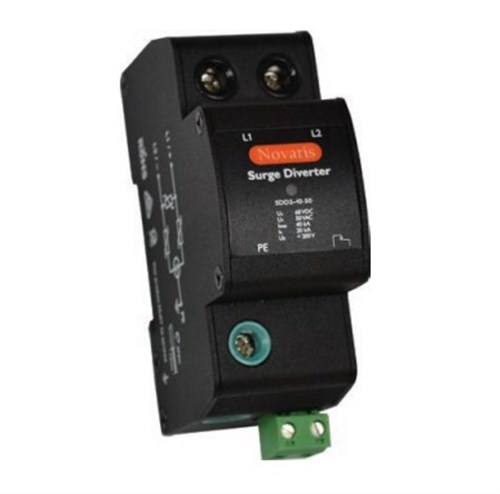

Novaris IDD2-40-130 Isolated Surge Diverter 40kA 20kA 110VAC/DC TS35 IP20

Product Code: IDD2-40-130

  • Surge protection up to 40 kA L-L, 20 kA L-PE
  • LED display for power and thermal failure
  • Compact design: 36mm W x 70mm H x 95mm D
  • Mounts on TS35 DIN rail for easy installation
  • Fast response time of <5 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
IDD2
Application
ELV AC and DC supplies

Electrical

Lightning Impulse Current Iimp (10/350µs)
2kA (L-L)10kA (L-PE)
Max. Backup Fuse
32A
No. of Poles (Total)
1
Nominal Voltage
110V AC
Voltage Protection Level Up
<360V
Max. Discharge Current Imax (8/20µs)
40kA
Nominal Discharge Current Inom (8/20µs)
10kA (L-PE)20kA (L-L)
Max. Continuous Operating Voltage
130 VAC/ 155 VDC

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
70mm
Height
95mm
Width
36mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
