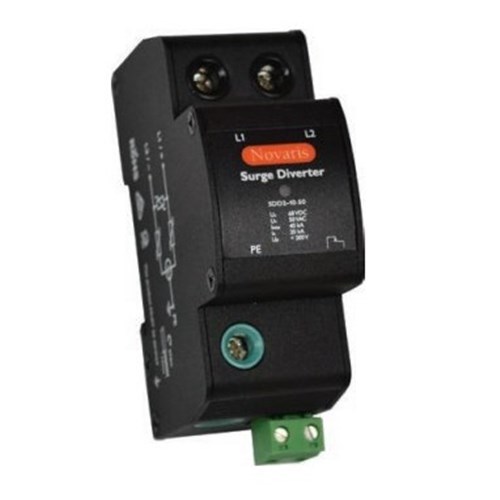

Novaris IDD2-12-30 Isolated Surge Diverter 12kA 6kA 24VAC/DC TS35 IP20

Product Code: IDD2-12-30

  • Rated for 24 VAC/VDC, 12 kA (L-L) surge current
  • LED display for power and thermal failure alerts
  • Compact design: 36mm wide, mounts on TS35 DIN rail
  • Fast response time of <5 ns for optimal protection
  • Complies with IEC and EEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
IDD2
Application
ELV AC and DC supplies

Electrical

Max. Backup Fuse
10A
No. of Poles (Total)
1
Nominal Voltage
24V AC
Voltage Protection Level Up
<130V
Max. Discharge Current Imax (8/20µs)
12kA
Nominal Discharge Current Inom (8/20µs)
6kA (L-L)3kA (L-PE)
Max. Continuous Operating Voltage
30 VAC/ 36 VDC

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
70mm
Height
95mm
Width
36mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
